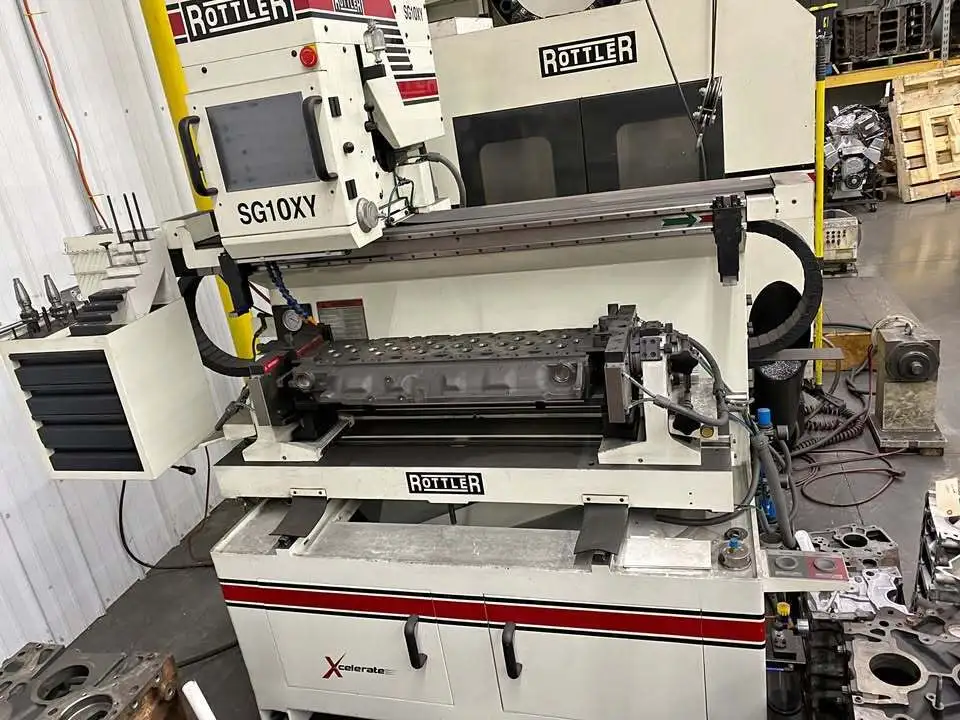

Rottler SG10XY Cylinder Head Machining Center (2022)
Have one to sell?
ConditionUsed
1 available
The Rottler SG10XY spindle is mounted on a sphere which allows the UNIPILOT to automatically center with the valve guide centerline while the Workhead is floating on air cushions. Once air floating stops and the Workhead clamps, the UNIPILOT and valve guide centerline are maintained while cutting the valve seat.
Spherical Pneumatic Automatic Alignment System built into the Spindle for fast location of the pilot into the Valve Guide and Accurate Centering (Patent Pending)
Air Float Work Head on Intermediate Base Plate
Heavy Duty Spindle - Diameter 3.150” (80mm) Hardened and Ground with 8” (200mm) of vertical travel.
Rottler Automatic Tightening and Quick Release Spindle Lock Nut System for One Hand Operation for fitting and removing tooling to and from the spindle – never comes loose!
Rottler SG10XY Cylinder Head Machining Center (2022)
Touch Screen - 12"
Travel Spindle Nose to Table - 19.312"
Spindle Taper - R30 Quick Change with Automatic Lock
Spindle Diameter - 3.15"
Spindle Speed - 50 - 1000 RPM
Spindle Motor - 2 HP
Valve Seat Diameter Range - 0.550" - 3.150"
Cylinder Head Dimensions (with 360 degree rollover fixture) - 44"L x 12"W x 6"H
Cylinder Head Dimensions (with Parallels) - L: Unlimited x 16" W x 5" H
Spindle Travel - 7.100"
Workhead Travel Horizontal - Airfloat/Airclamp - 43.5"
Workhead Travel In/Out - Airfloat/Airclamp - 3.065"
Workhead Tilt (either side of vertical zero) - 15 Degrees
Electrical Requirements - 208-240V, 30A, 50/60Hz, 1 Ph
Air Requirement - 4 CFM @ 90 PSI
