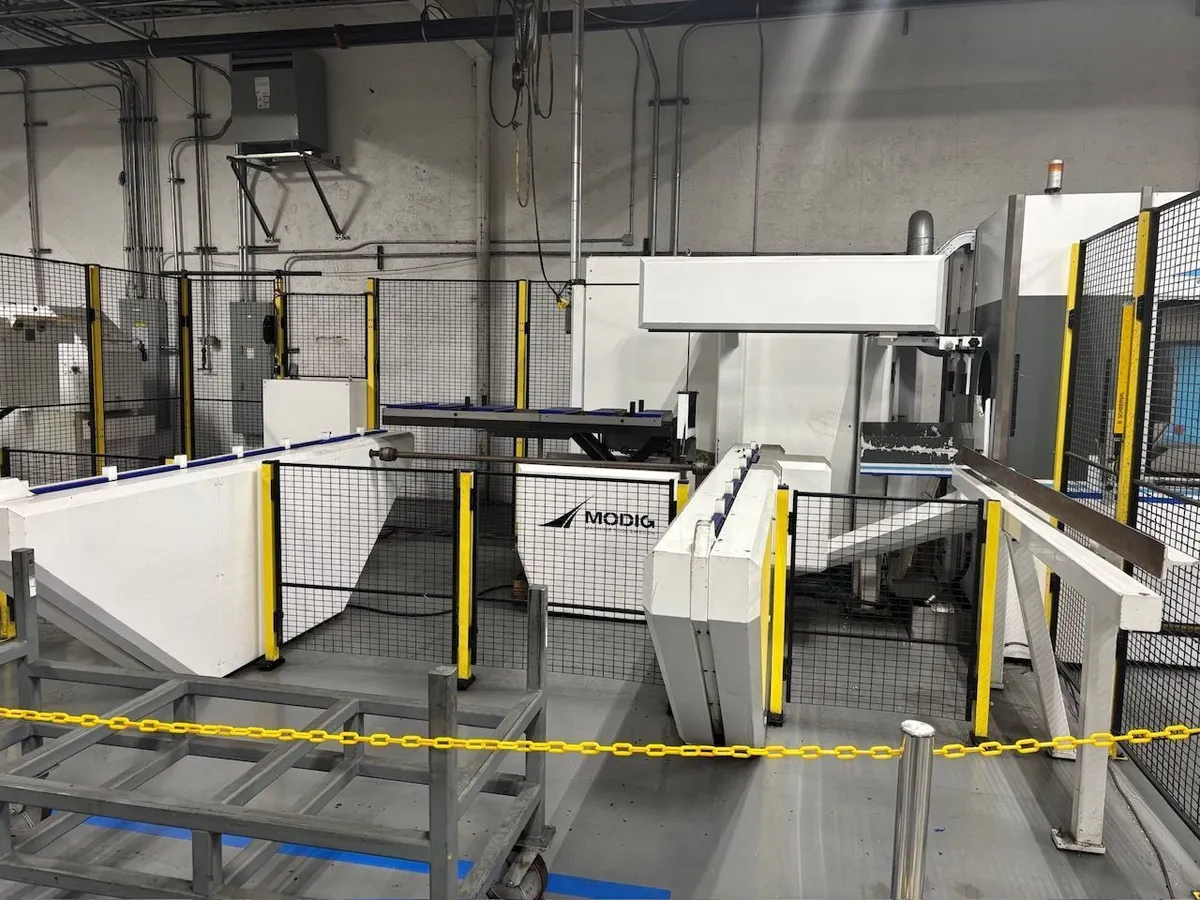

Modig MD7200 Profileline 5 Axis CNC Vertical Profile Machine (2021)

Modig MD7200 Profileline 5 Axis Vertical Profile Line

Rotary Table Size: 15.74” Diameter x 7.87” Bore
Spindle Nose to Table Top (Max / Min) 25.90” / 5.90”
Distance Spindle to Center of Rotary (Min/Max) 0 – 14.96”
Overhang Spindle to Column 15.55”
Left Rotary Table Slide Travel 39.3”
X-Axis Travel: 29.52”
Y-Axis Travel: 15.87”
Z-Axis Travel: 19.68”
Rapid Traverse (X&Y/Z) 945 / 787 ipm
Number of ATC Stations: 24 stations
Spindle Taper CT 40
Spindle Motor: 20 hp.
Maximum Spindle Speed 10 – 20,000 rpm
Machine Electrics: 480V/3Ph/60Hz
Machine Weight: 19,000 lbs. (Approx)
