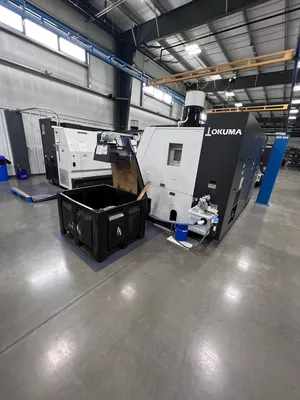

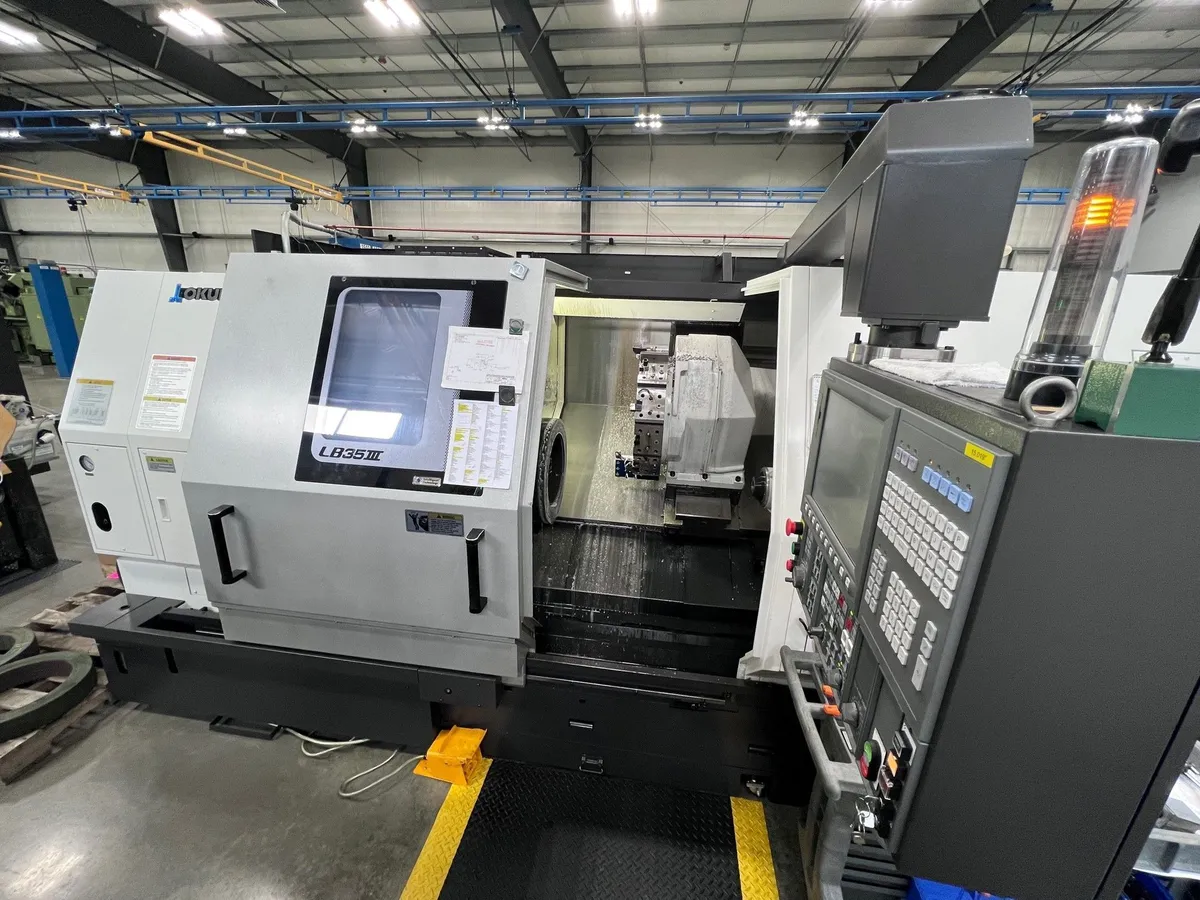

Okuma LB35 III x 850 Big Bore Cnc Turning Center (2021)

Okuma LB35 III x 850 Big Bore Cnc Turning Center (2021)

Swing Over Bed: 27.56"
Swing Over Carriage: 16.93"
Distance Between Centers: 36.22"
Max. Turning Diameter: 18.11"
Max. Turning Length: 33.46"
X-Axis Travel: 12.9"
Z-Axis Travel: 36.22"
Spindle Nose: JIS A2-11
Spindle Speeds: 14 to 3,200 Rpm
Thru-Spindle Hole Dia.: 4.33"
Turret, Positions: 12
Rapid Traverse Rate: X-.59 Ipm, Z-.79 Ipm
Spindle Motor: 40 Hp
Electrics: 220/480
Full Load Current: 99/45.4 A
Largest Motor Rating: 119 A
SCCR of Control Panel 10 kA
Machine Weight, Approx. 20, 020 Lbs.
Floor Space: 201” with chip conveyor X 86”
