Equipment
MACHINE TOOLS (CHIP MAKING)
Lathes CNC

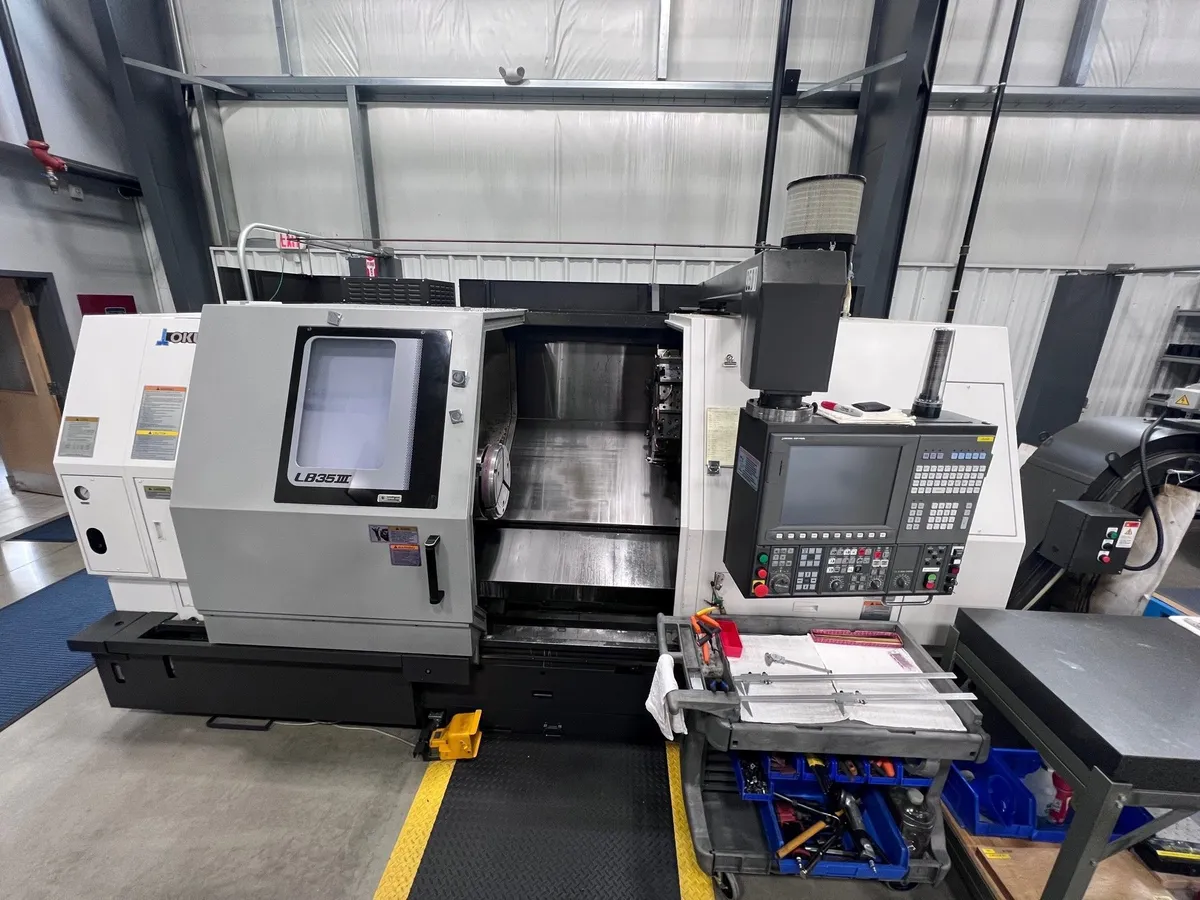

Okuma LB35 III x 850 CNC Turning Center (2018)

Okuma LB35 III x 850 CNC Turning Center (2018)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC
Manufacturer:
OKUMA
Model:
LB35III
Year:
2018
Stock #:
93820
Status:
For Sale

Description

Okuma LB35 III x 850 Cnc Turning Center (2018) 27.56" Swing, 36.22" Centers, 3,200 Rpm, 3.54" Sp. Hole, 12 Position Turret, 40 Hp, Conv., Okuma P300LA Cnc (2018)

size15" Chuck15" Chuck
Swing27.56"700.02 mm
Machining Length78.74"2,000 mm
# Axis22
Chuck Size15"381 mm
Bar Capacity3.54"89.916 mm
Power40 hp29.8 kW
Max RPM3,200 RPM3,200 RPM
Turning Dia18.11"459.99 mm
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC ((OSP P300LA))CNC ((OSP P300LA))
Weight20,000 Lbs.20,000 Lbs.

Okuma LB35 III x 850 Cnc Turning Center (2018)
Swing Over Bed: 27.56"
Swing Over Carriage: 16.93"
Distance Between Centers: 36.22"
Max. Turning Diameter: 18.11"
Max. Turning Length: 33.46"
X-Axis Travel: 12.9"
Z-Axis Travel: 36.22"
Spindle Nose: JIS A2-8
Spindle Speeds: 14 to 3,200 Rpm
Thru-Spindle Hole Dia.: 3.54"
Turret, Positions: 12
Rapid Traverse Rate: X-.59 Ipm, Z-.79 Ipm
Spindle Motor: 40 Hp
Machine Weight, Approx. 20, 020 Lbs.

Okuma P300LA CNC Control
Kitagawa 15" Chuck
Chip Conveyor
Royal Filtermist FX900
Electric Foot Pedal
