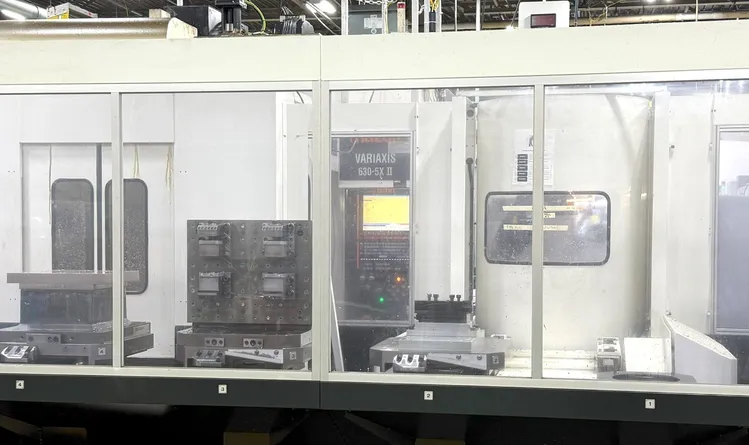

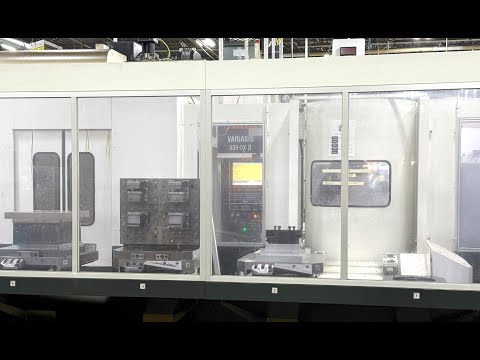

Mazak Variaxis 630-5X-II (5) Station 5 Axis Palletech Manufacturing Cell (2011)
Have one to sell?
ConditionUsed
1 available
(5) Station 5 Axis Palletech Manufacturing FMS, Matrix CNC, The Mazak Variaxis 630-5X II CNC Vertical Machining Center offers high-precision 5-axis machining with simultaneous movement across all axes, making it ideal for complex parts. It features a large working area with a 630 mm table, capable of handling workpieces up to 880 mm in diameter and 500 kg in weight. This machine is equipped with a powerful 12,000 RPM spindle, delivering both speed and precision for various materials, from aluminum to harder alloys.
(2011) Mazak Variaxis 630-5X-II (5) Station 5 Axis Palletech Manufacturing Cell
X-Axis Travels……………………. 24.80″
Y-Axis Travels……………………. 30.12″
Z-Axis Travels……………………. 20.08″
A-Axis Travels
(.001 Degree Positioning Only)…….-120 deg.- +30 deg.
C-Axis Travels……………………. 360,000 degrees
Distance Spindle Nose/Table Top…….. 9.06″ – 29.13″
(Table Horizontal)
WORKPIECE SIZE
Maximum Table Load………………… 1,102 lbs.
Max Workpiece Dimensions…………… 28.74” Dia x 19.69” Height
SPINDLE
Spindle Nose……………………… #40
Spindle Horsepower (30HP / Cont)……. 30/20 HP
Spindle RPM………………………. 12,000
Electrics ........... 400/3/60
(5) Station 5 Axis Palletech Manufacturing FMS
Mazatrol Matrix voice advisor touch pad digital control
15" color lcd
Die mold package
Inch/metric conversion
Cardbus IF 2-slot
LAN port
USB I/F
Dynamic compensation EIA/ISO
Y axis travel 30.12"
120 ATC
Pre visual tool ID MNG
Coolant thru spindle
Integrated Chip Conveyor
Work piece air blast
Flood Coolant
Probe pre for MP-10
Auto pecking
TBR & MMS
Additional M-code
High smoothing control
Tool breakage
Spare Spindle ( Brand New )
