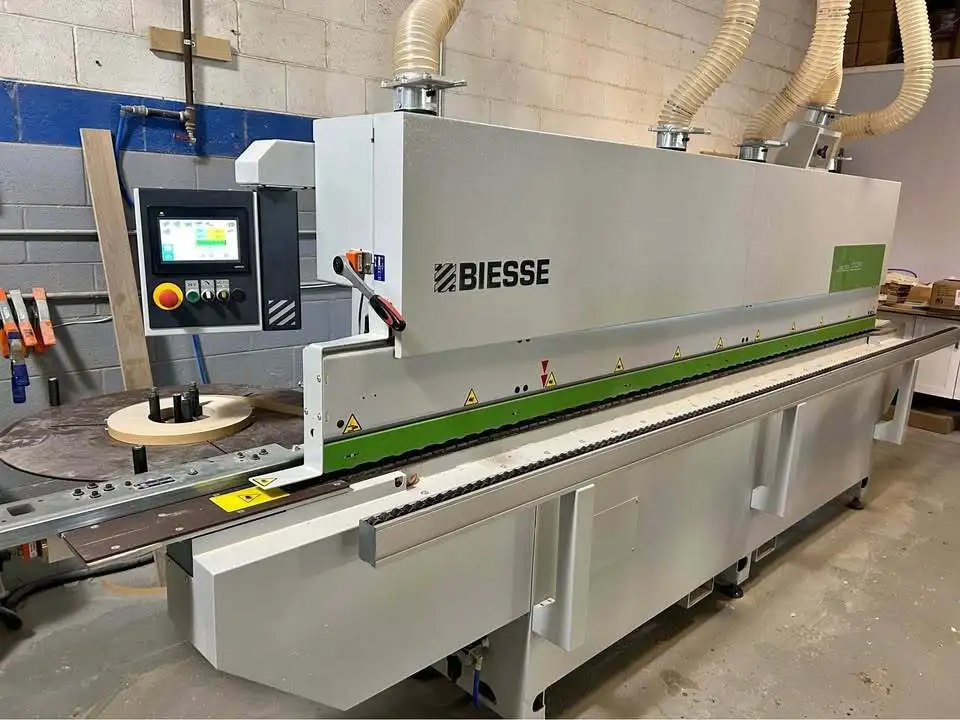

Biesse Jade 225A CNC Edgebander (2023)

Biesse Jade 225A CNC Edgebander (2023)

TECHNICAL CHARACTERISTICS

Panel height 10-60 mm

Height of edge-banding material 14-64 mm

Thickness of edge-banding material in rolls 0.4-3 mm

Thickness of edge-banding material in strips (*) 0.4-8 mm

Panel protrusion from track 25 mm

Min panel length 150 mm

Min panel width (with length 150 mm) 85 mm

Min panel width (with length 250 mm) 50 mm

Track feed speed 12 m/min

Dust extraction system for each operating unit 1 hood Ø 100 mm

Pneumatic connection 7 bar

Static frequency inverter 200 Hz

Glue pot capacity 2 (approx.) Kg

Glue pot heating time at ½ load 10 (approx.) minutes

STATION LAYOUT

Premill; 2 motor (counter-rotating)

Glue Application;

Tape Application

Pressure Rollers; 3 (1 powered)

End Trimming; 2 motor

Top and Bottom Trimmers (2 motor)

Top and Bottom Profile Scrapers

Top and Bottom Glue Scrapers

Top and Bottom Buff/Sand units
