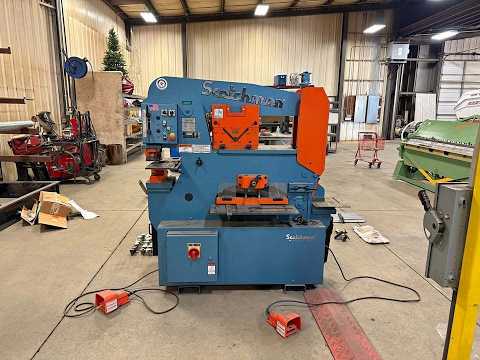

Scotchman DO 95/140-24M Hydraulic Ironworker (2022)

Scotchman DO 95/140-24M Hydraulic Ironworker (2022)

Punch Capacity - 95 Ton, 1-3/16" in 1"
Special Tooling - 4" Max. Dia.
Throat Depth - 9"
Flat Bar Shear (Sabre Blade-Std.) - 140 Ton, 24" Length
Angle Shear - 90 Degrees 6" x 6" x 1/2"
Angle Shear - 45 Degrees 3" x 3" x 3/8"
Angle Shear - 45 Degrees (With Bar Shear) 4" x 4" x 1/2"
Brake 12" - 80 Ton
Brake 24" - 55 Ton
Open End Brake (Flat Or Angle Iron) Max. - 1/4" x 5"
90 Degree V. Notcher - 6" x 6" x 5/16"
Rectangle Notcher - 3" x 5" x 3/8"
V-Notch - 3" x 3" x 3/8"
Notching In Leg Of Channel - 6" To 10"
Channel Shear - 2" To 6" Adj.
Rod Shear
Round Rod (Max.) - 1/4" To 1 -1/4", 9 Cavity
Square Rod (Max.) - 1/4" To 1", 1 Cavity
Strut Shear
Samples Required
Square Tube Shear - 1/2" To 2", 12 Gauge
Picket Tool - 1/2", 3/4", 1", 16 Gauge
Offset Die Holder Max. - 40 Ton
Strokes Per Minute In Light Material - 1/4" Stroke [Punch Station]
Strokes Per Minute In Heavy Material - 3/4" Stroke [Punch Station]
Hydraulics - 3500/3500 psi
Motor Standard - 10 H.P., 3ph
Voltage- 208/230/380/460/575 - 3 Phase
Dimension -
