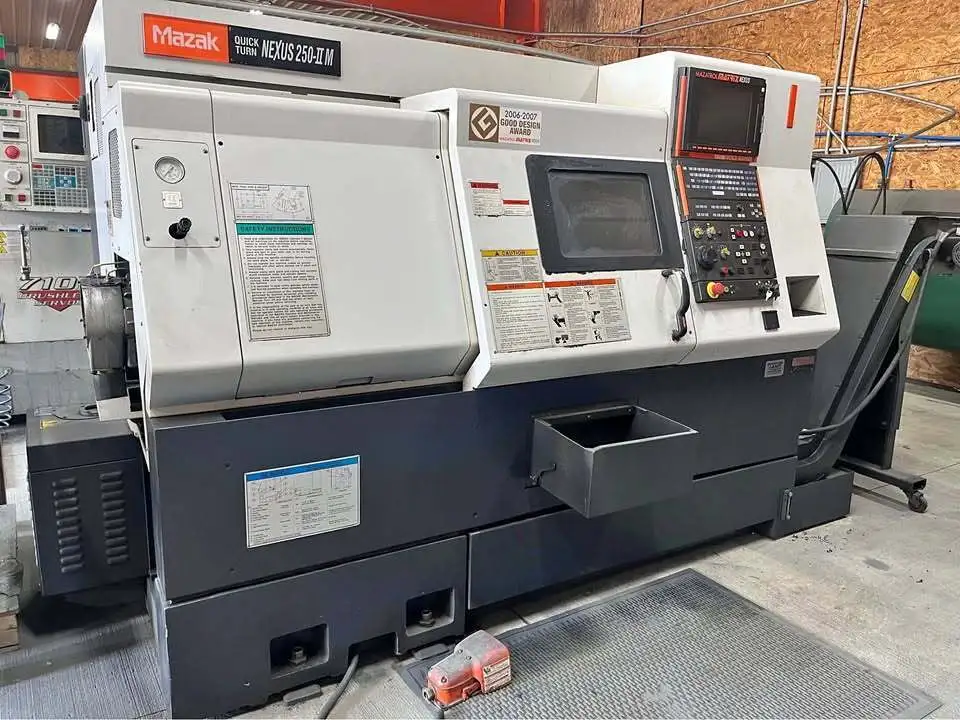

Mazak Nexus QT250M-II Live Tool CNC Lathe (2007)
Specifications:
Swing Over Bed 26.5"
Turning Diameter 14.75"
Machining Length 19"
Distance Between Centers 19.9"
Chuck Size 10"
Spindle Nose A2-8
Spindle Bore Diameter 3.4"
Spindle Bar Capacity 3"
Spindle Speeds Up to 4,000 Rpm
Spindle Motor 30 Hp
Travels: X-Axis 9"
Z-Axis 22.75"
C-Axis .001 Degree
Rapid Traverse Rates 1181 Ipm
Rapid Traverse Rates 1299 Ipm
Turret Configuration 12 Position
Turret Rotary Tool Speed Up to 4,500 Rpm
Turret Rotary Motor 7.5 Hp
Tailstock Travel 21.75"
Machine Weight, Approx. 14,900 Lbs.
Mazatrol Martix CNC
Live Tool
Chip Conveyor
10" Hydraulic Chuck
Programmable Tailstock
Automatic Parts Catcher
