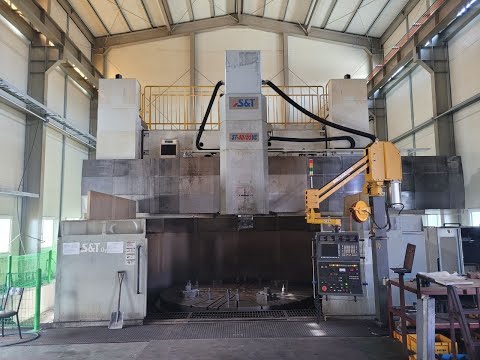

S&T ST-40/55VC CNC Vertical Milling & Turning Center (2012)
Have one to sell?
ConditionUsed
1 available
Live Milling, C axis 0.001 degree, 16 Position ATC, Angle head, Chip conveyor, Fanuc 31iA control
S&T ST-40/55VC CNC Vertical Milling & Turning Center (2012)
Table Diameter
4000 Mm
Maximum Swing
5500 Mm
Height Under Rail
2600 Mm
X-Axis Travel Of Ram
2900 Mm
Z-Axis Ram Stroke
1500 Mm
Ram Cross Section, Square
400 Mm X 400 Mm
Milling Spindle Speed
15 - 1,500 Rpm
Taper In Ram
#50
Milling Spindle Motor
22 Kw /25 Kw
Table Speeds, Max
60 Rpm
Table Roation, C-Axis
.001°
Table Table Capacity
45 Ton
Table Motor
60 Kw / 75 Kw
Machine Footprint
11151 Mm X 9906 Mm
Machine Height
8890 Mm
Machine Weight, Approx.
139706 Kg
Live Milling, C axis 0.001 degree, 16 Position ATC (8)/(8) Milling , Angle head, Chip conveyor, Fanuc 31iA control, Through Spindle & Flood Coolant, Fanuc Servo Motors & Drives on All Axis
