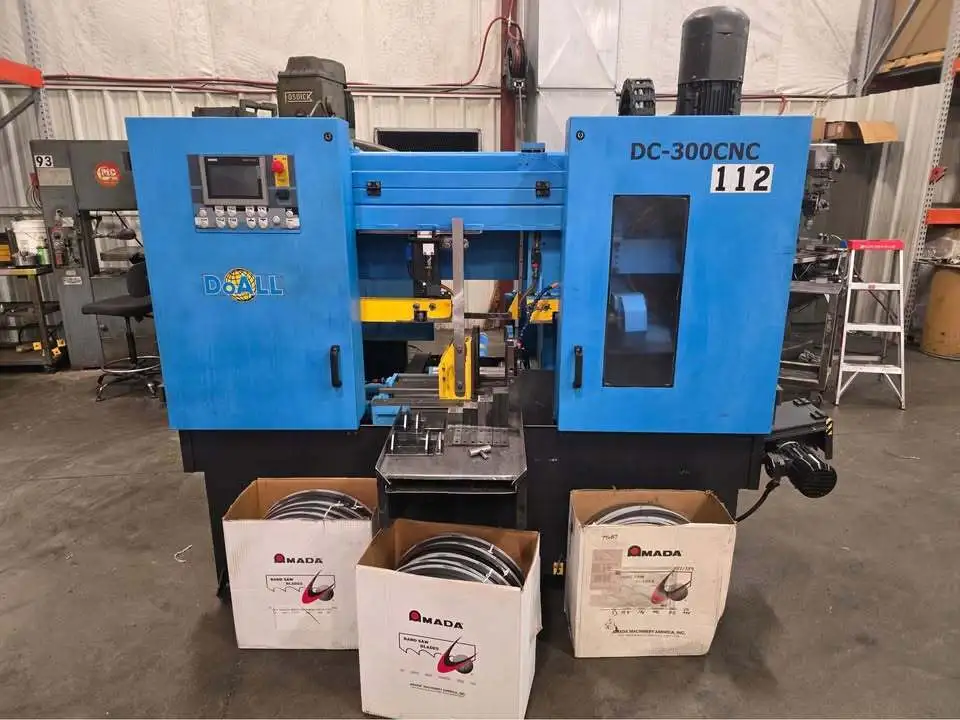

DoAll DC-300 CNC Horizontal Band Saw (2018)
Have one to sell?
ConditionUsed
1 available
Machine Capacity: w 12” x h 12″ (300mm x 300mm)
Round Tube: 12″ (300mm) | Round Solid: 10″ (250mm)
Production Level: Extreme
DoAll DC-300 CNC Horizontal Band Saw (2018)
Specs:
Saw Blade: Width x Length 1-1/4 " x 178"
Band Drive:
Motor HP- 5 Hp
Band Speed -65-328 fpm
Band Tension-Hydraulic
Hydraulic System:
Motor HP- 1 Hp
Reservoir Size 16 Gallon
Coolant System:
Flood coolant & Mist Lubricator Optional
Hydraulic Motor: .07 Hp
Reservoir Size 5.25 Gallon
Indexer:
Length per Stroke 19.9"
Maximum Index Strokes Length 394"
Remnant Length 2"
Floor Space Dimensions:
W x L X H 103" x 67" x 85"
Material Pass Height 31.5"
Machine Weight 3,131 lbs.
Electrical:
Voltage Requirement 460V-60Hz-3ph, Wye configuration
Total Amp Draw (FLA) 11.15 Amps
