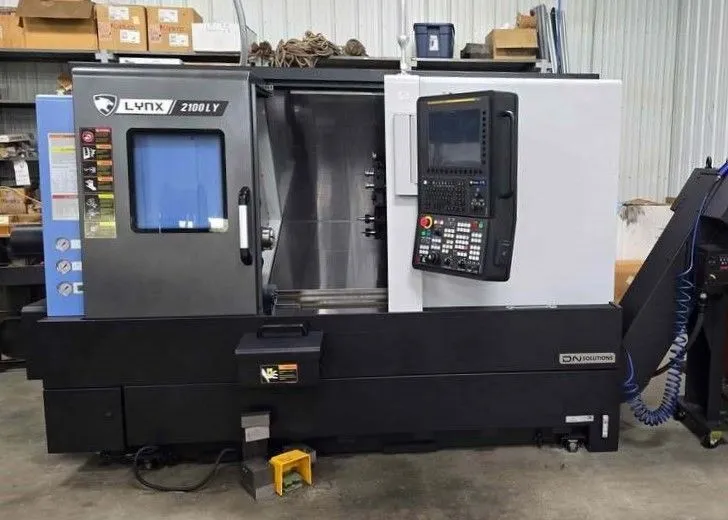

Doosan Lynx 2100LY Live Tool CNC Lathe (2024)
Have one to sell?
ConditionUsed
1 available
Under 200 Hours, Live Tool, Collet Chuck, Tool Presetter, Chip Conveyor, Tailstock
Chuck Size: 8-inch.
Spindle Motor: 15kW.
Spindle Speed: 4500 rpm.
Max. Turning Diameter: 300mm (11.8 inches).
Max. Turning Length: 510mm (20.1 inches).
X-axis Travel: 205mm (8.1 inches).
Z-axis Travel: 560mm (22.0 inches).
Y-axis Travel: ±52.5mm (±2.1 inches).
Turret: 12-station servo-driven BMT turret with a half-index feature (24 positions).
Standard Features: Toolsetter, parts catcher, EOP software, CNC tailstock.
115 spindle hours
Tools in the turret come with it
Brand new 3-jaw chuck included
Extended coolant collector
Collet chuck is optional
LNS chip conveyor
Parts catcher
Programmable tailstock
Y-axis and live tooling
Tool Presetter
Tailstock
