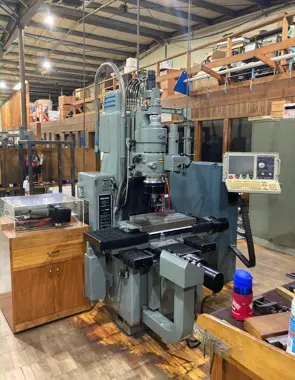

Moore G18 Cnc Jig Grinder (1990)

Moore G18 Cnc Jig Grinder (1990)

Table Size: 11" x 24"
X-Axis Travel: 17.5"
Y-Axis Travel: 10.5"
Table Top to Wheel Collet: Minimum 2"
Table Top to Wheel Collet: Maximum 18"
Spindle to Column Ways: 10"
Spindle Column to Below Ways: 13-1/2"
Infinately Variable Spindle Speeds: 25 to 225 Rpm
Infinately Variable Spindle Feeds: 2 to 120 S.P.M.
Spindle Feed Adjustment: 0.100 to 3-5/8"
Grinding Wheel Speeds: 6,000 to 175,000 R.P.M.
Grinding Capacity, Grinding Wheels: 1/64" to 3-1/2"
Angular Adjustment of of Spindle: 1.5 Degree (either way)
