Direct Color Systems UV-84DTS Wide Format UV Flatbed LED Printers (2021)
Have one to sell?
ConditionUsed
1 available
Low Hours ! The largest Z-Axis print height on the market, print up to 12" in height!
Direct Color Systems is raising the bar on the next generation of flatbed LED printers. The new UV-84DTS Gen2 printer has a 12" z-axis vertical height allowing you to print to more than standard sign materials. The Gen2 print also utilizes Ricoh Gen6 industrial printheads with a smaller drop volume and faster firing frequency you can count on top-quality prints everytime.
You can develop more applications, produce more products, and generate more profits.

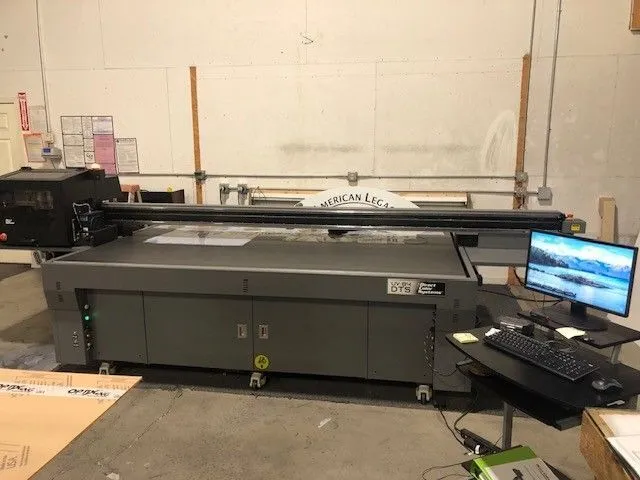

Direct Color Systems UV-84DTS Wide Format UV Flatbed LED Printers
Print Heads: 5 Ricoh Gen 6 Printheads, On-Demand Piezo Inkjet, Variable Drop Greyscale
Resolution: 605x300dpi / 605x600dpi / 605x900dpi / 605x1200dpi / 605x2400dpi
Ink Sets: 4 Color Printing, White & Clear, Direct Pour Ink Tanks, Individual Sub Tanks, Auto ON/Off
Printer Size: 10.4’ Wide x 15.3’ Long x 6.3’ High / 3.2m x 4.7m x 1.9m
Vacuum Table: 4 Adjustable Independant Vacuum Zones for Maximum Substrate Hold-down
Printer Weight: 3263lbs / 1480kg - Crated Weight 3748lbs /1700kg
RIP: Color Byte 11 with Compass Feature and Printer Control Software
Power Requirements: 320V AC 50/60
Environmental: 68°F - 86°F / 20°C - 30°C - 68°F to 78°F/20°C to 25.5°C Optimal
Color: Print Modes 32 ft2 - 128 ft2/Hr (3.0 - 12.0 m2/Hr)
Full bed - 10 Minutes at 1200dpi - 96”x 48” (250cm x 130cm)
Color & White: Print Modes 32 ft2 - 128 ft2/Hr (3.0 - 12.0m2/Hr)
Full bed - 10 Minutes at 1200dpi - 96”x 48” (250cm x 130cm)
Full Bed Textured - 2400dpi - 96”x 48” (250cm x 130cm) - 48 Minutes
ADA/Braille: Full Bed ADA - 2400dpi - 96” x 48” (250cm x 130cm) - 65 Minutes
121023
1. Substrate dependent. 2. Bidirectional; Print times may vary dependant on print mode configuration. 3. All substrates and textiles/fabrics should be tested for image receptivity, adhesion and
durability with final acceptance and suitability determined by the customer. 4. Some materials may require the use of an adhesion promoter or a chemical wipe prior to printing to promote
adhesion. This data sheet is for informational purposes only. Direct Color Systems makes no warranties, expressed or implied in this summary.
Specifications are subject to change without notice. This is not an offer for sale. Compliant with patents: directcolorsystems.com/patents.
DCS CORPORATE 99 Hammer Mill Road, Rocky Hill, CT USA 06067 | 800 693-6376 | +1 860 829-2244 | Info@directcolorsystems.com
DCS EAA Rua Do Alto Das Torres 942, 4430-009 Vila Nova De Gaia, Portugal
605x300dpi / 605x600dpi / 605x900dpi / 605x1200dpi / 605x2400dpi
4 Color Printing, White & Clear, Direct Pour Ink Tanks, Individual Sub Tanks, Auto ON/Off
Color Byte 11 with Compass Feature and Printer Control Software
(2) 220-240VAC 50/60HZ 20A Max Single Phase Circuits
68°F - 86°F / 20°C - 30°C - 68°F to 78°F/20°C to 25.5°C Optimal
Color & White
4 Adjustable Independant Vacuum Zones for Maximum Substrate Hold-down
1 Year Limited Warranty
:2015
5 Ricoh Gen 6 Printheads, On-Demand Piezo Inkjet, Variable Drop Greyscale
10.4’ Wide x 15.3’ Long x 6.3’ High / 3.2m x 4.7m x 1.9m
3263lbs / 1480kg - Crated Weight 3748lbs /1700kg
Textured
ADA/Braille
Print Modes 32 ft2 - 128 ft2/Hr (3.0 - 12.0 m2/Hr)
Full bed - 10 Minutes at 1200dpi - 96”x 48” (250cm x 130cm)
Print Modes 32 ft2 - 128 ft2/Hr (3.0 - 12.0m2/Hr)
Full bed - 10 Minutes at 1200dpi - 96”x 48” (250cm x 130cm)
Full Bed Textured - 2400dpi - 96”x 48” (250cm x 130cm) - 48 Minutes
Full Bed ADA - 2400dpi - 96” x 48” (250cm x 130cm) - 65 Minutes
