Mazak QT-EZ8MSY Live Tool CNC Lathe (2021)
Have one to sell?
ConditionUsed
1 available
Low Hours, Live Tool, Sub Spindle, Barfeed, Powerful and reliable integral motor headstock designs.
Rotary tooling (M) and Y-axis off-centerline machining (Y) for Multi-Tasking processing.
High-production second spindle (S) for DONE IN ONE part processing.
Hybrid MX Roller Guide System improves rigidity, accuracy and reliability.
Pre-tensioned ball screw systems with support at each end.
12 position drum turret (bolt on type) for rotary tool applications.
Tailstock options include a manual position with hydraulic quill or servo positioning capability.
Seamless integration of bar feeders and robots for unattended operations.
Mazak QT-EZ8MSY Live Tool CNC Lathe (2021)
Capacity Maximum Swing in / mm 27.40 / 695 27.40 / 695
Maximum Machining Diameter in / mm 16.13 / 410 13.5 / 343
Standard Machining Diameter in / mm 8.35 / 212 9.25 / 235
Maximum Bar Work Capacity in / mm 2.0 / 51 2.0 / 51
Maximum Support Weight (Chuck) lbs / kg 440 / 200 440 / 200
Maximum Support Weight (Shaft Work) lbs / kg 1,100 / 500 1,100 / 500
Maximum Machining Length 500U in / mm 23.47 / 596 mm 20.78 / 528 mm
Main Spindle Chuck Size in / mm 8 / 203 8 / 203
Maximum Speed of STD Chuck rpm 5,000 5,000
Motor Output (30 minute rating) hp / kw 20.0 / 15 20.0 / 15
Maximum Speed rpm 6,000 6,000
Spindle Torque (Max) ft-lbs / N-m 123 / 167 123 / 167
Spindle Nose A2-6 A2-6
Second Spindle Chuck Size in/mm 5 / 127
Maximum Speed rpm 6,000
Motor Output (30 minute rating) hp/kw 10 / 7.5
Turret Number of Tools Number 12 12
Maximum Speed rpm 6,000
Motor Output (10 minute rating) hp/kw 7.5 / 5.5
Feed Axes Travel (X Axis) in/mm 8.5 / 216.0 8.5 / 215.0
Travel (Y Axis) in/mm 4 / 100
Travel (Z Axis) in/mm 24.5 / 622 23.75 / 605
Travel (W Axis with Steady Rest) in/mm 22.87 / 605
Dimensions Machine Depth in / mm 75 / 1905 75 / 1905
Machine Length in / mm 102.4 / 2,600 102.4 / 2,600
Machine Height in / mm 67.9 / 1,725 67.9 / 1,725
Machine Weight lbs / kg 11,244 / 5,111 12,125 / 5,500

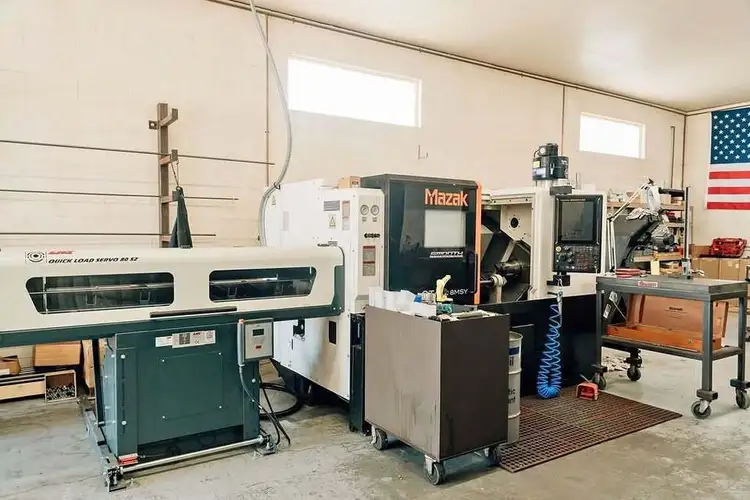

Low Hours, Live Tool, Sub Spindle, LNS Servo 80 S2 Quick Load Barfeed, Tool Presetter, Collet Chuck on Main, 3 Jaw Chuck on Sub, Additional 3 Jaw Chuck for Main, Parts Catcher, Chip Conveyor
