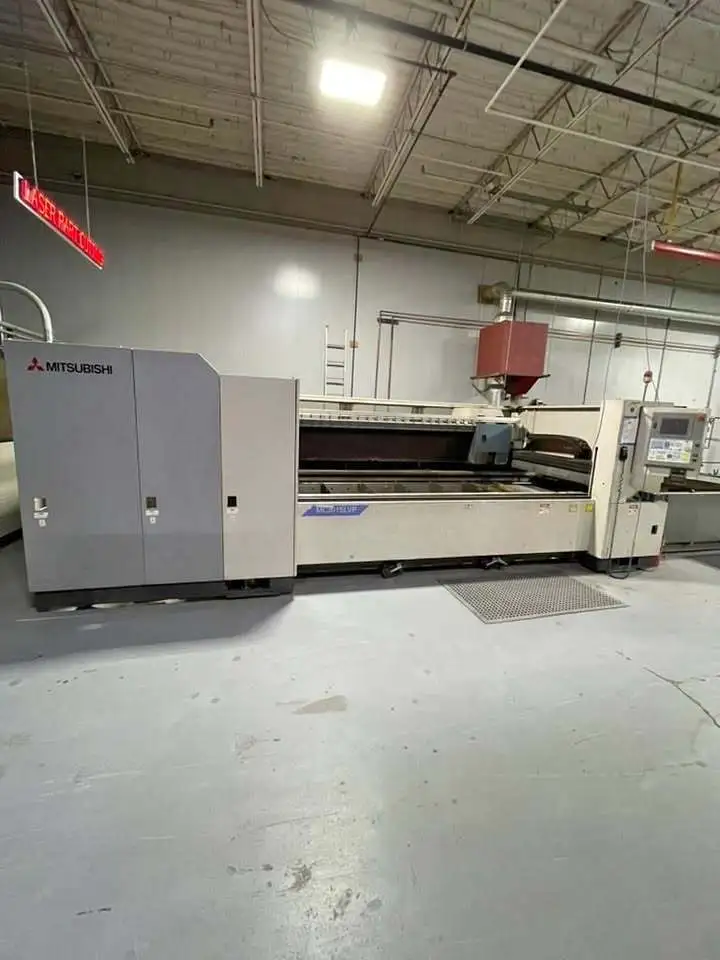

Mitsubishi ML 3015 LVP (2002)
Have one to sell?
ConditionUsed
1 available
The ML 3015 LVP features a generous 120" x 60" maximum workpiece capacity and impressive 1180 IPM processing feed rate. Its precision rack and pinion direct drive system enables smooth, simultaneous 3-axis control for complex cutting operations.
Motion system: Precision rack and pinion, direct drive
Travel drive method: X, Y, Z simultaneous 3 axis control
X-axis stroke: 122.05″
Y-axis stroke: 61.02″
Z-axis stroke: 3.53″
Maximum work piece size: 120.08″ x 60.04″
Maximum processing feed rate: 1180 IPM
Maximum workpiece weight: 2050 lbs.
Table pass height: 33.5″
Rapid travel speeds:
Single axis: 3345 IPM
Simultaneous: 4730 IPM
Minimum command input: 0.001mm/.0001″
Weight and Dimensions:
Drive motor type: intelligent AC servo
Machine unit dimensions: 418.5″ L x 90.6″ H x 183″ W
Total system weight: 26,325 lbs.
Pallet change time: Approximately 25 seconds
Pallet changer weight: 4500 lbs.
Pallet changer drive mechanism: chain
Installation dimensions: 473.4″ x 227.7″
Floor space requirement: 750 square feet
Electrical requirements: 208 VAC +/- 5%, 3 phase, 60 Hz
- Mitsubishi CNC Control
- 35CF Resonator
- Chiller unit
- Dust collector
- Schmalz vacuum lift for material handling
