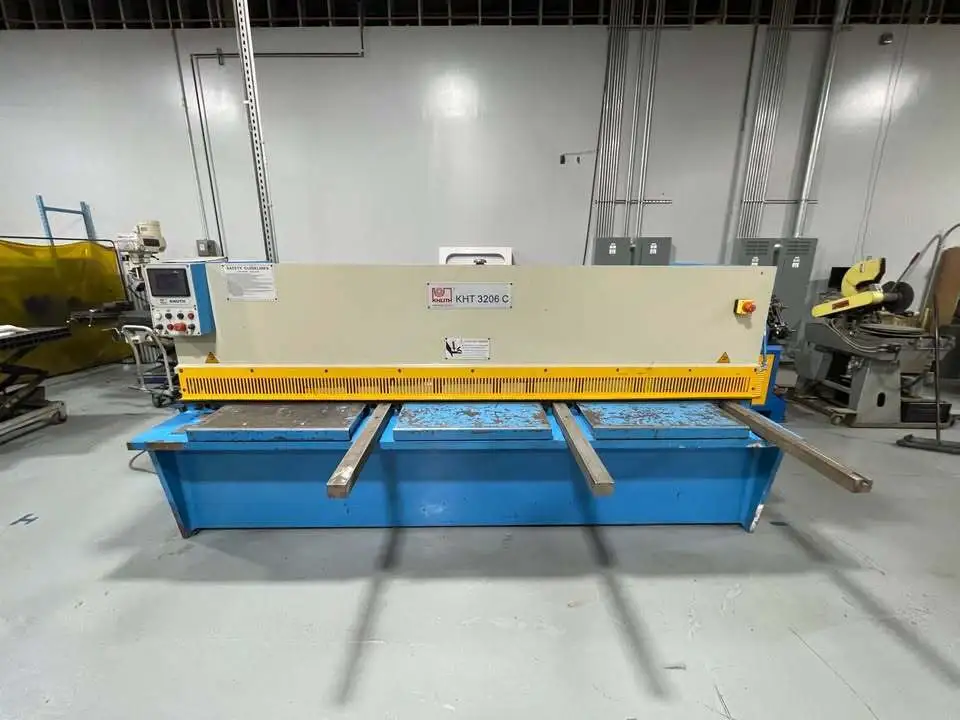

Knuth KHT 3206C Hyd. Squaring Shear (2010)
Have one to sell?
ConditionUsed
1 available
This industrial-grade KNUTH hydraulic shear provides exceptional cutting capacity for medium to heavy production environments. Built for reliability with a 1/4" thickness capacity across 126" width.
The user-friendly 5.7" touch-screen display with Easy View control ensures simple operation, while the pneumatic sheet support and 39" back gauge guarantee accurate and repeatable cuts. With squaring arms and foot control included, this machine combines power, precision, and efficiency in one comprehensive package. Powered by 220/440V 3-phase electricity, this substantial 15,840 lb unit is ready to become the backbone of your metal cutting operations.
• Control: Easy View
• Maximum Plate Thickness (ST 42): 1/4"
• Maximum Cut Length: 126"
• Rake Angle: 1° 30'
• Rear Stop Range: 0.8” – 23.5"
• Back Gauge + Pneumatic Sheet Support: 39"
• Cuts per Minute: 14
• Distance Between Columns: 135"
• Work Table Height: 31.5"
• Motor Rating: 10 HP
• Power: 220/440 Volt, 60 Hz, 3 Phase
• Dimensions (L x W x H): 51” x 63” x 64"
• Weight: 5,840 lbs
• Oil Capacity: 66 gallons
• Foot control
• Squaring arms
• 5.7” touch-screen display with Easy View control
• Foundation bolts
• Operator manual
