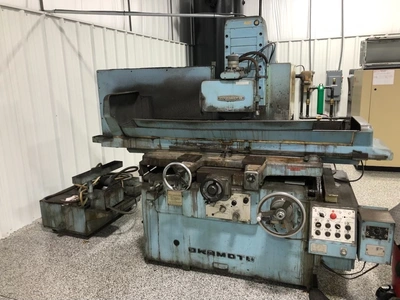

Okamoto Model PSG-84 16" x 32" 3 Axis Hydraulic Surface Grinder (1981)
Have one to sell?
ConditionUsed
1 available
3 Axis, Over the Wheel Dresser, Spark Out, Electro Magnetic Chuck
16" x 32" Okamoto Model PSG-84 3 Axis Hydraulic Surface Grinder (1981)
Specifications and Equipment
Max Chuck Size: 16" x 32"
Max Table Movement: 37.4"
Automatic Table Travels: 32" x 16"
Max Distance Wheel to Table 20.5" Under: 20.5" Under 14" Wheel
Max Wheel Size: 14" x 1.5" x 5" Hole
Wheel Speed: 1800 RPM
Auto Longitudinal Feed Rate: Variable to 100 FPM
Rapid Wheelhead Feed Rate: 19 IPM
Auto Wheelhead Downfeed Increments: .00015" - .0011"
3 Axis, Spark Out, 16" x 32" Electromagnetic Chuck with Variable Control, Over-the-Wheel Dresser, Incremental Down feed, Hydraulic Table and Saddle Feeds, Coolant
System, Wheel Hub and Nut, Manuals, 5 HP Spindle Drive Motor and Controls.
