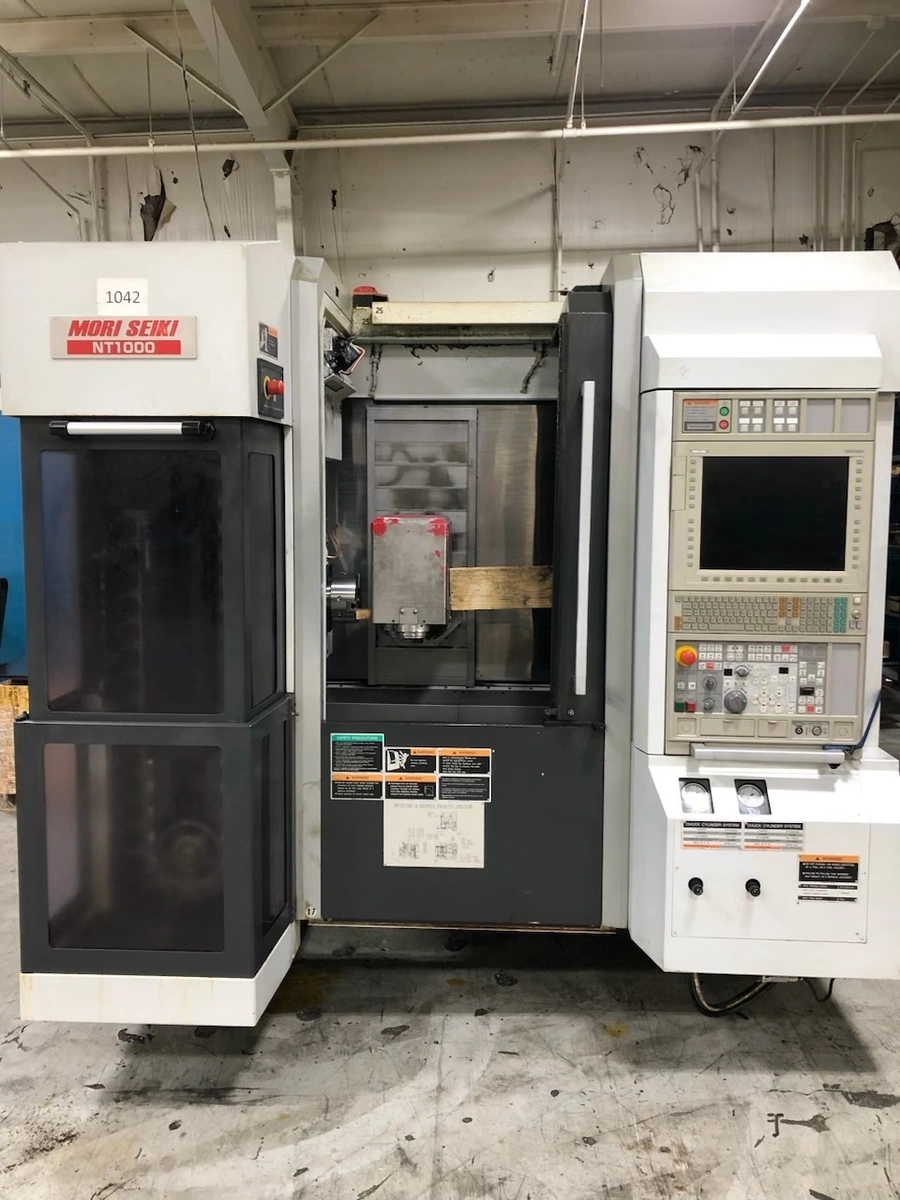

Mori Seiki NT1000/S Multi Tasking CNC Lathe (2010)

Mori Seiki NT1000/S 7 Axis Multi Tasking CNC Lathe (2010)

CAPACITY:

Swing Over Bed ………………………………………….. 14.6″
Swing Over Cross Slide …………………………….. 14.6″
Turret 2 ……………………………………………………… 11.8″
Distance Between Centers ……………………….. 35″
Maximum Turning Diameter (Spindle 1) …. 14.6″
Turret 2 ……………………………………………………… 8.3″
Maximum Turning Length ………………………… 16.7″
Bar Work Capacity ……………………………………. 2″
X1-Axis Travel …………………………………………… 15″
X2-Axis Travel ………………………………………….. 18.1″
Y-Axis Travel …………………………………………….. /-4.1″
Z-Axis Travel …………………………………………….. 18.1″
Z2-Axis Travel …………………………………………… 24″
SPINDLE 1, MAIN SPINDLE:

Max. Spindle Speed …………………………………… 6000 RPM
Spindle Nose …………………………………………….. JIS A2-5
Spindle Hole Diameter …………………………….. 2.4″
Bar Capacity …………………………………………….. 2″
Min. Spindle Indexing Increment ……………. 0.0001 Degree
Spindle Motor …………………………………………… 15 HP
SPINDLE 2, SUB-SPINDLE:

Spindle Speed ………………………………………….. 6000 RPM
Bar Capacity ……………………………………………. 1.5″
Spindle Motor ………………………………………….. 10 HP
TOOL SPINDLE, UPPER TURRET:

Spindle Speed …………………………………………. 12,000 RPM
Spindle Taper ………………………………………….. CAPTO C5
Tool Capacity (ATC) ……………………………….. 36 ATC
Tool Change Time ………………………………….. 1.2 Seconds
B-Axis Indexing Increment ……………………. 0.0001 Degrees
DIMENSIONS & WEIGHTS:
Floor Space ………………………………………….. 95.5″ x 106.5″
Machine Height …………………………………… 94.5″
Machine Weight …………………………………… 19,360 Lbs.
