| size | 40" x 24" x 24" | 40" x 24" x 24" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 24" | 609.6 mm |
| Z Travel | 24" | 609.6 mm |
| Power | 11 kW | 14.8 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23" | 584.2 mm |
| Table-L | 47" | 1,193.8 mm |
| # Axis | 4 | 4 |

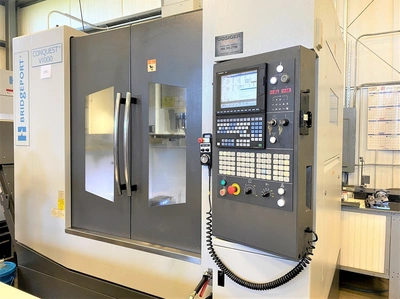

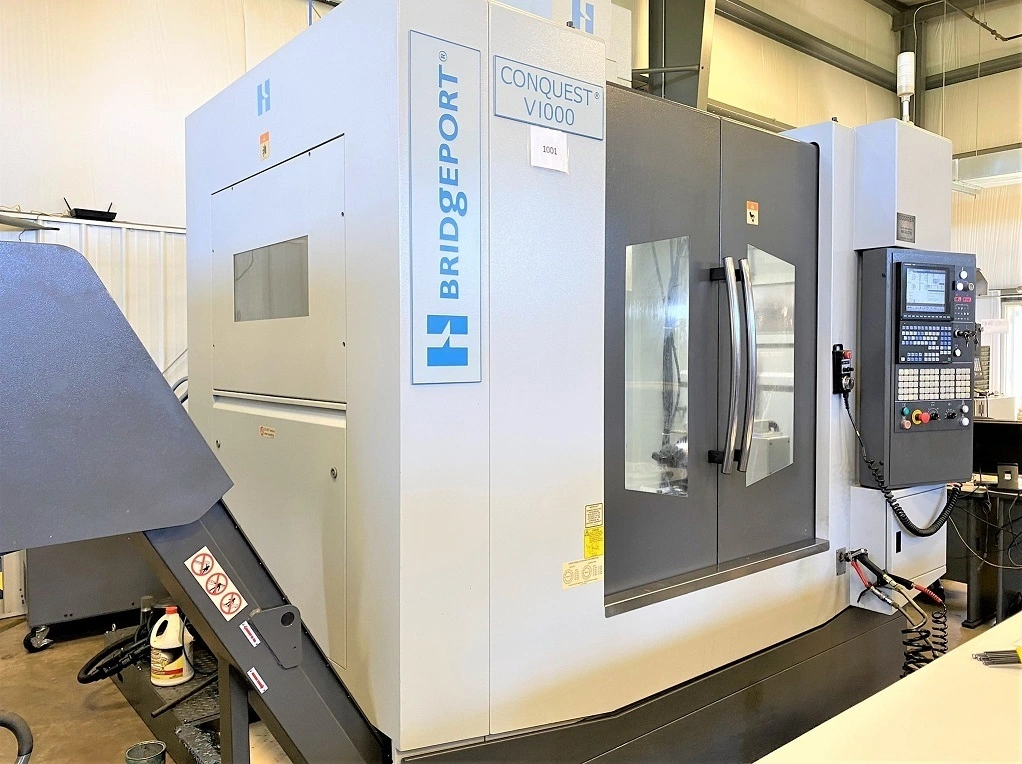

Hardinge Bridgeport Conquest V1000 Cnc Vertical Machining Center (2015)
Specifications:
Table Size: 47.2" x 23.6"
Travels: X-Axis 40"
Y-Axis 24"
Z-Axis 24"
Spindle Nose to Table Top 3.9" to 27.95"
Load Capacity on Table 1,984 Lbs.
Spindle Taper #40
Spindle Speeds (Standard) 10,000 Rpm
Main Motor 11 Kw
Tool Changer 30 Atc
Tool Change Time 2.5 Sec. tool to tool
Maximum Tool Weight 15 Lbs.
Machine Dimensions 105" x 112" x 120"
Machine Weight, Approx. 15,400 Lbs.
Mitsubishi M70
Manual Pulse Generator
Linear Guide Ways
Surround Tool Coolant (On Spindle)
Ethernet Connection
Coolant Pump & Tank
Chip Conveyor
High Pressure Coolant Thru Spindle
