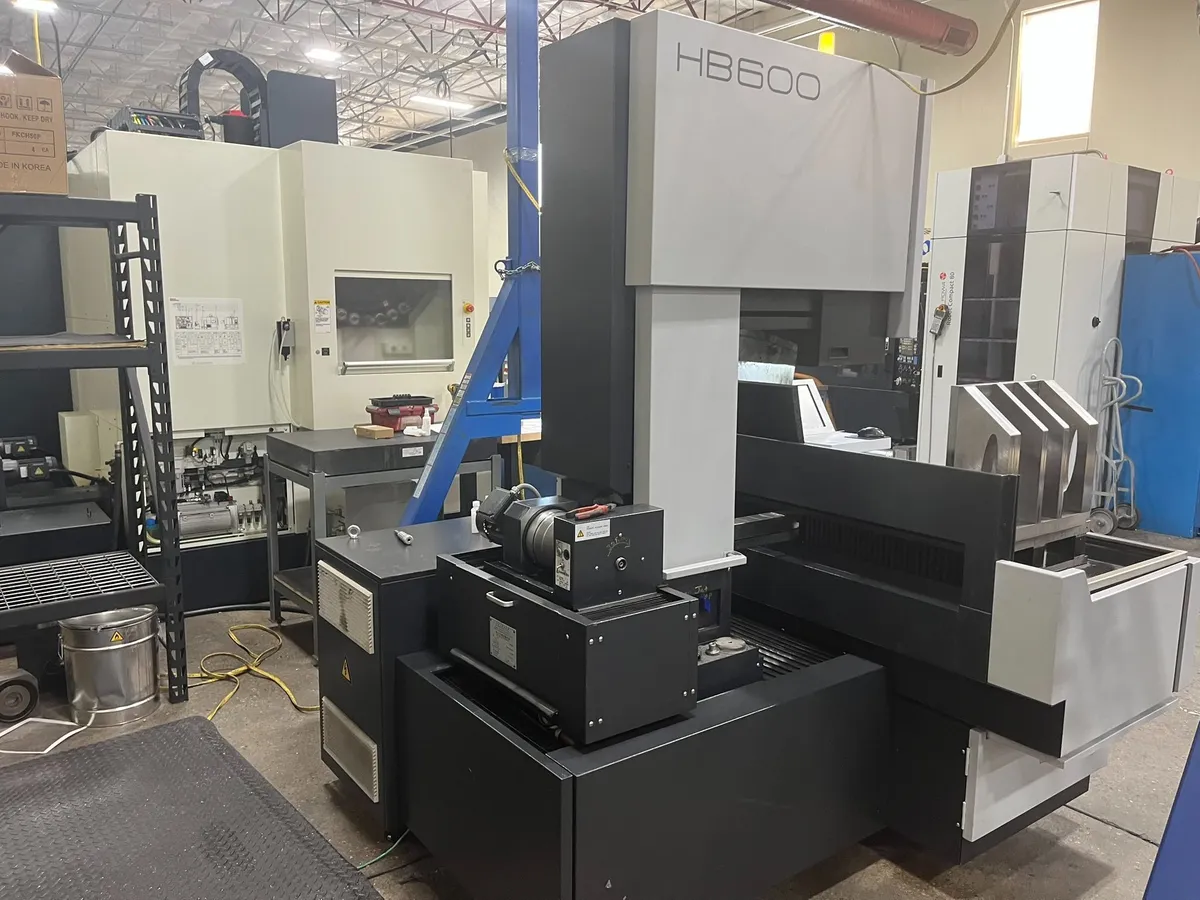

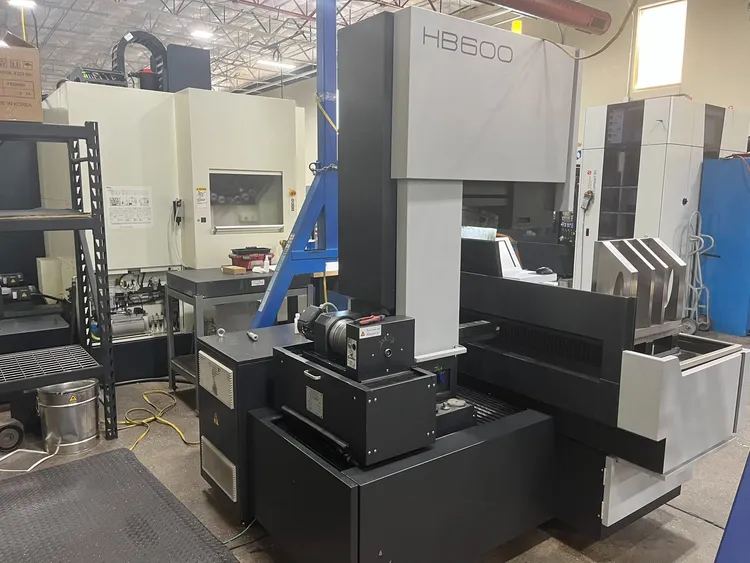

Suzhou Sanguang SSG HB600 4 Axis Wire Type EDM Electrical Discharge Machine (2019)

Suzhou Sanguang SSG HB600 4 Axis Wire Type EDM Electrical Discharge Machine (2019)
Worktable stroke(X,Y） 600mm*400mm

Wire Speed 1.18-11.8m/s

Machine weight 2500㎏/2800㎏

Machine Dimmension(L*W) : 2260mm*1870mm

Max.workpiece height 400mm

Max. Cutting Angle 20º/100mm

Worktable size 1250mm*700mm

Max.workpiece weight 900㎏

Water tank

Filter accuracy 0.01mm

Capacity 130L

Working Methode Filtration System

Pulse Power

Max cutting speed ≥300㎜²/min

Best Surface Finish Ra≤0.6μm

Max. Cutting Currrent 12A

CNC System

Hardware Configurations: Industrial computer, LED display, Mitsubishi AC servo driver system, Schneider Inverter

Data Port USB, LAN

Programming Code: ISO code

Axis Numbers 5-axis and 4 axis simultaneous control, pitch compensation realized.

Menu Language Chinese/English/English (Inch)/ Italian/ Korean/Japanese

Aluminum cutting option

Power Supply

Power 3-380V±10% 50±1HZ

Working temperature 10-35℃

Consumption 1.2KVA

Option

Z axis CNC

Aluminum Cutting
