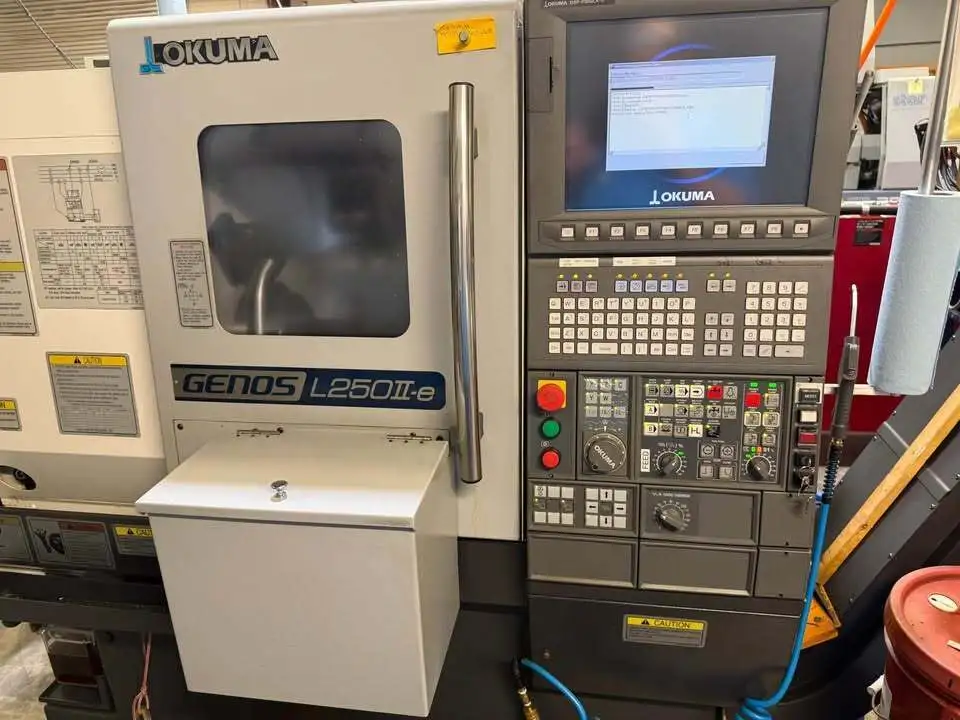

Okuma Genos L250II-E 2 Axis CNC Lathe (2020)

Okuma Genos L250II-E 2 Axis CNC Lathe (2020)

Specifications
Swing over Bed Ø17.7″
Swing over Cross Slide Ø11.81″
Max Recommended Turning Diameter Ø8.66″
Max Recommended Turning Length
with Std Chuck(s) 11.42″
Travel, X-Axis 6.29″
Travel, Z-Axis 12.99″
Rapid Travel IPM X-Axis 984
Rapid Travel IPM Z-Axis 1,181
Axis Thrust X-Axis, lb-f 836
Axis Thrust Z-Axis, lb-f 850
Coolant Tank Capacity (Gals Approx. 34
Power Requirement: 3-Phase 220 Volts, 50/60Hz
kVA without Optional Equipment 12.6
Floor Space Required W x D x H (Inches, without Chip Conveyor). 58″ x 72″ x 64″
Weight (lbs.) 6,380
Tailstock
Chip Conveyor
