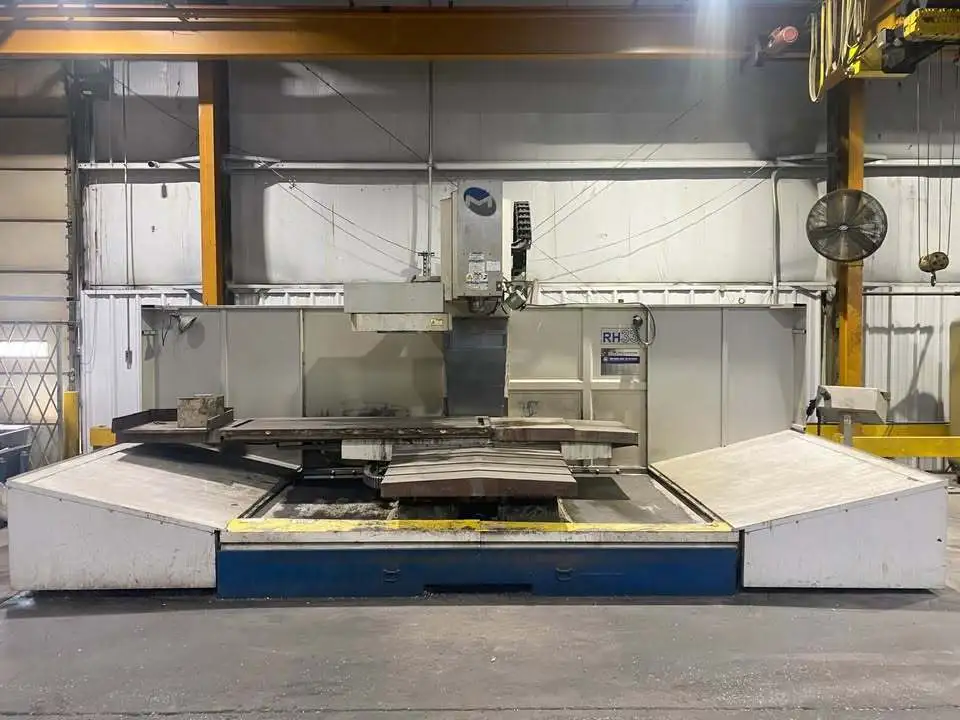

Milltronics RH 33 Series F Vertical Machining Center (2014)

Milltronics RH 33 Series F Vertical Machining Center (2014)

Table Size 86" x 32"
Travels
X - Axis 78"
Y - Axis 33"
Z - Axis 28"
Max. Weight on Table 3,960 Lbs.
Table T-Slots .71"
Spindle Taper 40
Spindle Speeds 8000 RPM
Max. Spindle Torque 155 Ft-Lbs.
Tool Changer 24
Max. Tool Diameter 3.46"
Max. Tool Length 11.85"
Max. Tool Weight 15 Lbs.
Rapid Traverse Rate 800/600 IPM
Approx. Dimensions 252" x 127" x 115" H
Approx. Weight 15,000 Lbs.
Foot Print as set up 240" x 153"
