Doosan Model Puma 480 2 Axis Slant Bed CNC Lathe (2014)
Have one to sell?
ConditionUsed
1 available
2 Axis, Slant Bed, Fanuc 21iTB CNC

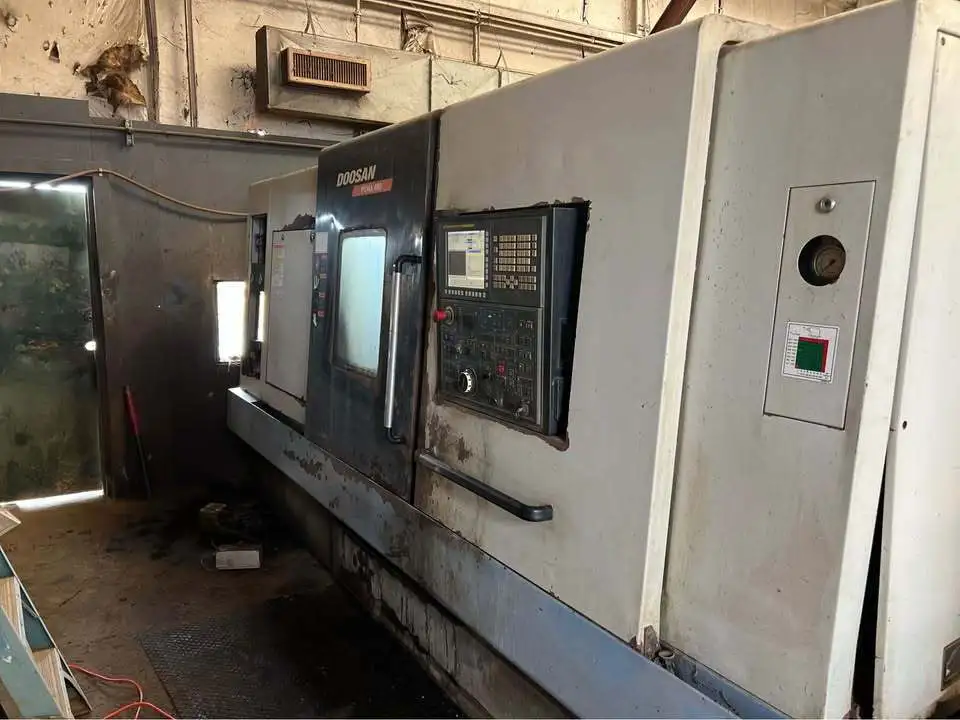

Doosan Model Puma 480 2 Axis Slant Bed CNC Lathe
Swing Over Bed: 35.4"
Max Cutting Diameter: 25.6"
Max Cutting Length: 40.0"
Distance Between Centers: 44.7"
Bar Capacity: 6.55"
Spindle Bore: 7.12"
Spindle Nose: A1-15
Spindle Motor: 60 Hp
Spindle Speed: 1,500 Rpm
Rapid Traverse Rate (X/Z): 790 Ipm
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Turret Capacity: 12-Station
Equipped With:

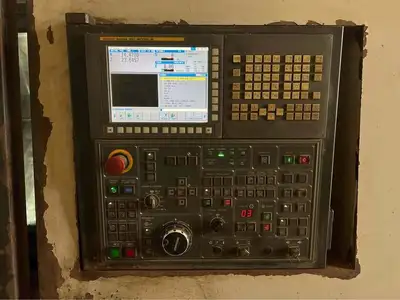

Fanuc 21i-Tb Control
21" 3-Jaw Samchully
2-Speed Gearbox
Tool Presetter
Chip Conveyor
Box Way
