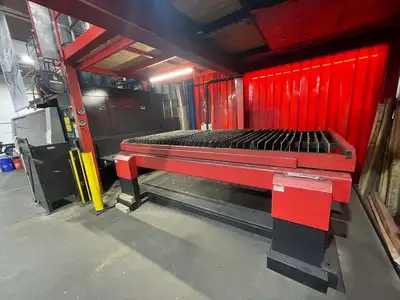

Amada Ensis 3015 AJ Fiber Laser (2020)
Have one to sell?
ConditionUsed
1 available
Only 10,000 Operating Hours, The Amada ENSIS 3015 AJ is a renowned CNC fiber laser cutting machine that excels in various industrial applications. From automotive to aerospace industries, this machine is ideal for producing precise metal parts efficiently. The machine is engineered for high-speed cutting, accommodating both small and large metal sheets. It focuses on minimizing operational downtime, enhancing productivity, and delivering high-quality outputs. Metal fabricators particularly benefit from its excellent edge quality and reduced processing costs. This machine's adaptability in manufacturing critical components enhances its value across industry sectors. As a vital tool in production lines, it transforms raw materials into perfectly cut parts.
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis
Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.00039"
Max. Material Weight: 2,028 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: (3,000 Watts)
Laser Wavelength: 1.08 m
Power Stability: ±2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1–10000Hz
Pulse Duty: 0–100%
Max Cut Mild Steel: .98”
Max Cut Stainless Steel: .98”
Max Cut Aluminum: .98”
Max Cut Brass: .70”
Max Cut Copper: .46”
Assist Gas: 4 Ports w/ NC Pressure Control
Electrical Req.: 200V, 3-Phase, 60Hz, 65kVA Max
■ Feature(1): Thin-to-thick materials cutting with a single machine
The laser beam configuration is controlled using AMADA’s unique beam control technology. The Process Range Expansion to thick mild steel. In addition, unlike conventional technologies, full range cutting capability without lens change.
■ Feature(2): Improvement of energy efficiency with energy-saving effects
The characteristic of fiber laser have enabled the reduction of power consumption during processing and stand-by, as well as a significant decrease in CO2 emissions.
■ Feature(3): Remarkably small footprint by oscillator downsizing and built in the machine
The oscillator has been downsized by 50% from previous versions, and is built into the machine for space saving.
■ Feature(4): Flexible layout
The free selection of unloading direction of the material (right or left) according to the factory layout.
■ Feature(5): Easy operation
The latest NC control AMNC 3i provides large screen with easy vision and operation with multi-touch method like smart phone, thus dramatically improving operability.
