Scotchman 5014-ET 50 Ton Ironworker
Sold

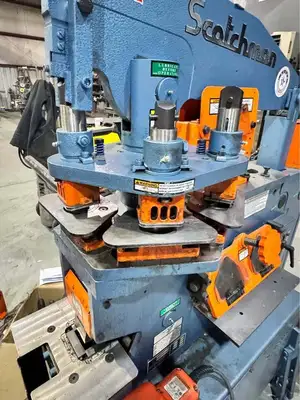

Scotchman 5014-ET 50 Ton Ironworker

Ironworker-Mechanical
Manufacturer:
SCOTCHMAN
Model:
5014 ET
Stock #:
93678
size50 Ton50 Ton
Tonnage50 T45.359 t
Power5 hp5 hp
Throat4"101.6 mm
Dimensions29" x 47" x 67"29" x 47" x 67"
Weight1575 Lbs1575 Lbs

•Stations: 7
•Rated Capacity (tons): 50
•Punching Capacity (Std): 1-1/4 inch OD in 1/2 inch plate
•Punching Throat Depth (inches): 4
•Flat Bar Shearing Max Width (inches): 1/4 x 14
•Flat Bar Shearing Max Thickness (inches): 3/4 x 4
•Angle Shear Max Size 90 Deg (inches): 4 x 4 x 3/8
•Angle Shear Max Size 45 Deg (inches): 2 x 2 x 3/8
•Throat Depth (inches): 4
•Special Tooling Max Cap: 2.25
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2.5 x 3 x .313 or 2.5 x 2.75 x .375
•90 Deg V Notcher Capacity (inches): 6 x 6 x .125 or 3 x 3 x .25
•Round Bar Shear Capacity (inches): 1/4 to 1
•Square Bar Shear Capacity (inches): 1/4 to 3/4
•Square Tube Shear Capacity (inches): 1/2 to 1
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 40 spm; 3/4 inch stroke = 17 spm
•Motor (Opt): 5 hp, 220 volt, 1 phase
•Hydraulics: 2100 psi

- Round punch kit ranging from 1/4"-1" by the 32nds
- Oval 1/2"x1" punch
- Rod Scheer accessory
- Offset angle iron accessory, for different sized legs on an angle iron, like to cut a 1-1/2"x2" angle iron
- Repeater measuring bar
- Single Operator, 7 Stations
- 50 Ton punch station with 3-station revolving turret
- Keyed punch ram for safety
- 2" Die holder (one for each punch station - qty 3)
- Punch nut with wrench & stripper (one for each punch station - qty 3)
- One round punch & die: max. diameter 1"
- Adjustable electric stroke control with scale
- Electric remote foot pedal
- Angle shear
- Flat bar shear with 4-way reversible blade
- Rectangle notcher
- Tool table work area
- LED work lights now standard equipment!
- Slug receptacle
- Electrical box supplied with emergency palm button & lock-out tag-out accommodations
- All guards necessary to comply with ANSI B11.5 safety standards
