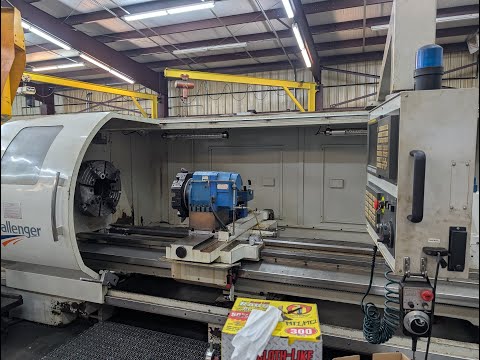

Challenger SL-350/120 36" x 120" Big Bore Flat Bed CNC Lathe (2008)
Have one to sell?
ConditionUsed
1 available
10" Bore, Front and Rear Chucks, CHALLENGER USA SL-350 CNC Lathes were developed to meet today's demands for superior turning center performance. Its distinctive design of a long center distance allows
the SL-350 to have the largest work capacity and spindle horsepower in its class.
To insure that the base machine has the best possible foundation, the bed material is high
quality, meehanite process cast iron, which has superior shock absorbing characteristics to
withstand the forces of heavy-duty machining.
Challenger SL-350/120 Big Bore Flat Bed CNC Lathe (2008)
GENERAL FEATURES
Maximum swing in gap------------------------------ 45.0”
Maximum swing over bed---------------------------- 36.3”
Swing over cross slide------------------------------- 21.6
Center distance------------------------------------ 120”
Bar Diameter---------------------------------------- 10"
Max. work piece weight between centers 80”, 120”and 200”-- 6,600 Pound
Machine Weight 80” 16,500 lbs.
Weight 120” ------------------------------ 19,200 Lbs.
Weight 200” ------------------------------ 24,600 Lbs.
SPINDLE
Spindle Nose A2-15
Spindle Bore 10"
Spindle RPM, 2 speed range--------- 15-1500 RPM
Spindle Horsepower (Cont/30 min) 40/45 (A.C.)
AXIS
Rapid Traverse Rate of X-Axis 500 IPM
Rapid Traverse Rate of Z-Axis 500 IPM
Feedrate ------------------------------------------ 100 IPM
TAILSTOCK
Center MT #6
Diameter 4.9"
Quill Travel-- 8.0"
Fanuc 0itb Control with movable Control box
(2) 25" Front and Rear Chucks
8 Station Turret
(2) Steady Rests
Chip Conveyor
Fully ground box ways with turcite
Removable gap
Standard Work light
Complete Coolant System
Semi enclosed Splash Guard
Tailstock with Quill reduction device
Remote Manual Pulse Handwheel
