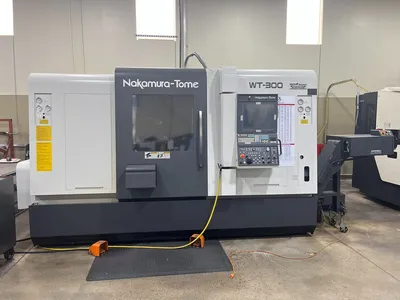

Nakamura-Tome Model WT-300 CNC Lathe (2012)
Have one to sell?
ConditionUsed
1 available
Live Tooling, Twin Turret, Twin Spindle, LNS Chip Conveyor, This high rigidity multitasking machine from Nakamura-Tome is equipped with high-output motors featuring the ultimate in machining performance, in both turning and milling. In addition to the low center of gravity and wide-bed design to provide more stability, the machine is equipped with box-type slides and guide-ways, which are high-frequency hardened and ground to precision. The slides are traditionally hand scraped by highly skilled technicians, adopting a long established tradition called “KISAGE”, which has been continued since the hydraulic lathe era.
Combining the latest in technology and the highest in capabilities, the Nakamura-Tome WT300 is the ultimate turret-type multi-tasking machine.
Nakamura-Tome Model WT-300 CNC Lathe (2012)
Capacity
ø3.2 in ( 80) / ø4 (102) (op.) in (mm)
Max Turning Diameter
10.6 (270) in (mm)
Distance Between Spindles
max 43.3 (1100) / min 9.8 (250) in (mm)
Max Turning Length
30.7 (780) in (mm)
Bar Capacity
4 (102) (op.) in (mm)
Bar Capacity L-Spindle
3.2 in (80 ) in (mm)
Bar Capacity R-Spindle
2.6 (65) in (mm)
Chuck size
10 in in (mm)
Axis Travel
Slide travel (Y)
±2.4 (60) in (mm)
Slide Travel (B)
33.5 (850) in (mm)
Slide Travel (X1/X2)
7.4 (188) / 7.7 (195) in (mm)
Slide Travel (Z1/Z2)
30.7 (780) / 30.7 (780) in (mm)
Rapid Feed (X1/X2)
630 (16) / 630 (16) in/min (m/min)
Rapid Feed (Z1/Z2)
1063 (27) / 1063 (27) in/min (m/min)
Left Spindle
Spindle Speed
3500 / 2500 rpm
Spindle Nose
A2-8
Hole Through Draw Tube
3.2 (81) / 4 (103) in (mm)
Right Spindle
2.5 in (80 )
Spindle Speed
4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5 (66) in (mm)
C-Axis
Least Input Increment
1E-3 degree
Turret
Number of Tool Stations
24
Number of Indexing Positions
24
Rotating Tool
Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12x2
Drive motor power
Main Spindle
25 HP
Right Spindle
25
Driven Tool Spindle
7.5 HP
General
Machine Weight
30865 (14000) lbs (kg)
Total Foot Print as Set Up For Production 17' x 97" x 90"
Live Tooling, Twin Turret, Twin Spindle, LNS Chip Conveyor
