Tsugami B0326-II 6-Axis CNC Swiss Type Lathe (2013)

Tsugami Model B0326-II 6 Axis CNC Swiss Type Lathe (2013)

Maximum Part Size: 32 mm / 1.263"
Number of Axis: 6
Max Headstock Stroke w/ Guide Bushing: 320 mm / 12.6"
Max Headstock Stroke w/o Guide Bushing: 70 mm / 2.76"
Main Spindle Speed: 200 - 8,000 RPM
Sub Spindle Speed: 200 - 8,000 RPM
Live Tool Speed: 200 - 6,000 RPM
Run in Guide Bushing Mode: YES
Run in Guide Bushless (chucker) Mode: YES
Tool Positions (std / max): 29/43
Number of Live Tool Positions (std / max): 11 /22
Control Type: Fanuc

Equipped With
Fanuc 32i-B CNC Control

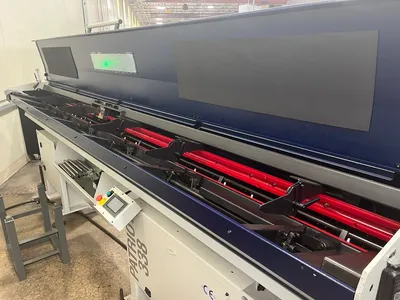

Edge Technologies Patriot 338 Barfeed S/N P2201653876 (2016)
LNS Turbo MH500 57009166 Chip Conveyor
Tri-Mist 850-G2 High Output High Efficiency Mist & Smoke Collector
3PM Model 100 Machine Boss Monitoring System
MP Systems High Pressure Cooling System
