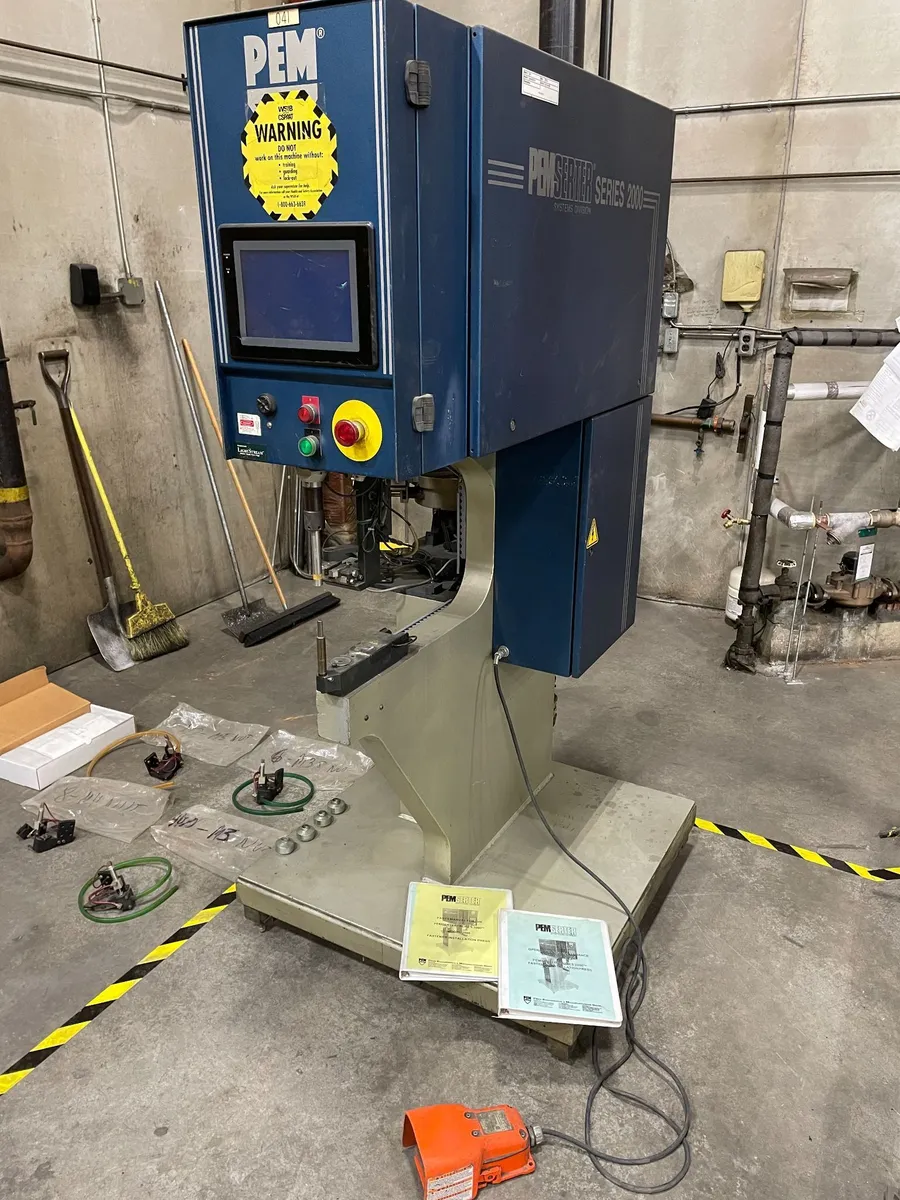

Pemserter 2000A 8 Ton Insertion Press (1999)

Pemserter 2000A 8 Ton Insertion Press (1999)
Specifications:
Ram Force 400 to 16,000 lbs
Pressure System Type Air-Over-Oil
Air Requirements 90 to 100 PSI
1/2” dia. minimum line flow
Throat Depth 24”
Throat Height 11.5”
Anvil Thickness 6”
Height 76”
Width 36”
Depth 49.5”
Weight 2,500 lbs.
Electrical (North America) 120VAC(+/-12 VAC), 60 Hz(+/-1 Hz), 5A, 1φ
Air Consumption approx. 5 liters/sec air at 15 Scfm
20 insertions per minute at 4500 Lbf
Ambient Temperature 32° F to 104° F
Transport / Storage Temperature -13°F to +130°F and for short
periods not to exceed 24 hours up to 160°F
Ambient Humidity 0% to 100% (Not reflective of inlet air)
Installation Altitude Max 1000m
