Vision Engraving Systems Model 2525 CNC Router (2016)

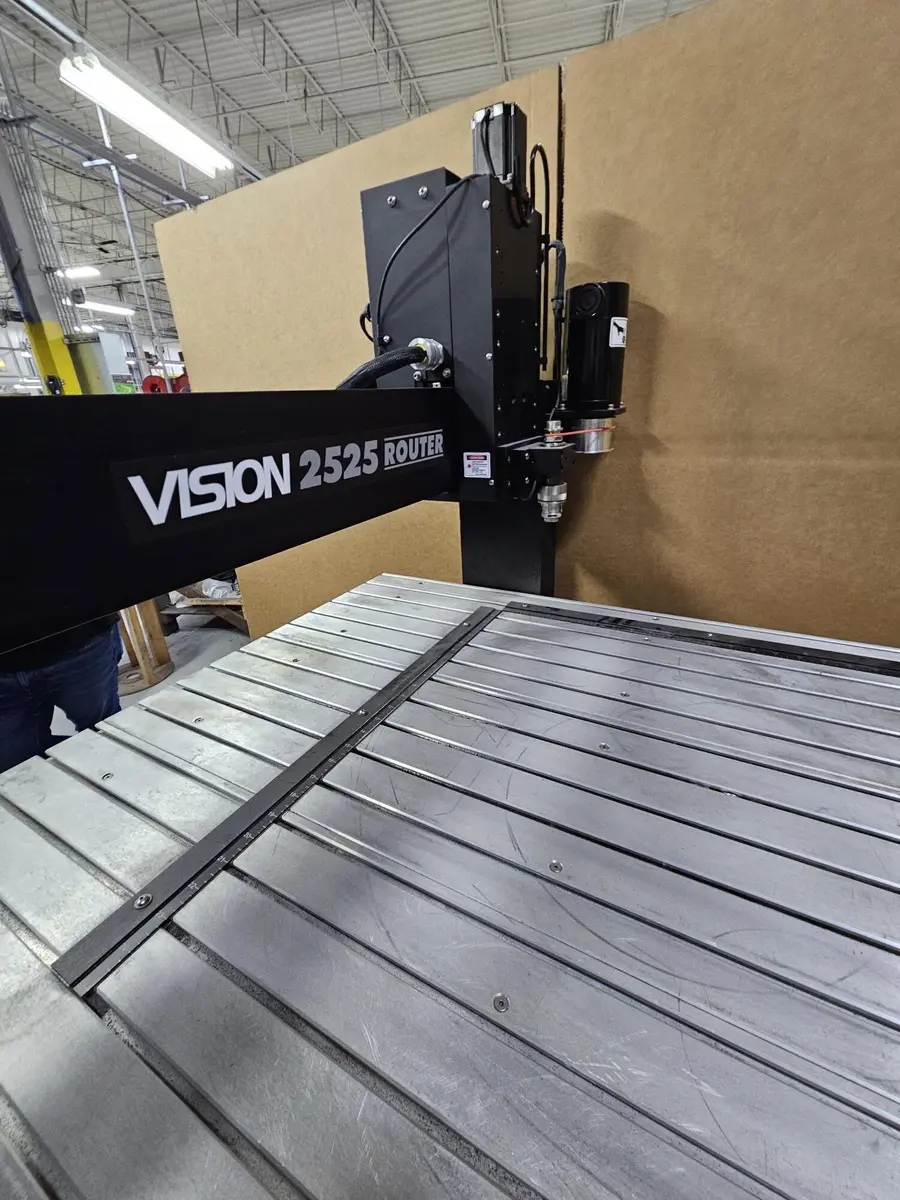

Vision Model 2525 CNC Router

Work Surface Area: 16 x 12 in (406 x 305mm)
Maximum Part Size: 18.75 x 14.6 x 4 in (476 x 368 x 102mm)
Dimensions: 26 x 14 x 25 in (661 x 356 x 635 mm)
Rotary Capacity: Max Diameter 5 in (127 mm) with 1.5 in (38.1 mm) lens
Max Diameter: 1 in (25.4 mm) with 2 in (50.8 mm) lens
Motorized Z-axis Lifting Capacity: 20 lbs (9 kg)
Available Focus Lenses: CO2 1.5 in (38 mm)
2.0 in (51 mm) *standard
Laser Platform Interface Panel CO2 1.5 in (38 mm)
2.0 in (51 mm) *standard
Operating System Compatibility: Requires a dedicated PC to operate.
Compatible with Windows XP/Vista/7 32/64 bit
PC Connection: USB 2.0
Optics Protection: Plumbed for compressed-air-based optics protection.
Cabinet Style Desktop
Laser Options: 10, 25, and 30 Watts
Approximate Weight: 70 lbs (32 kg)
Power Requirements: 110V/10A or 220V-240V/15A
Exhaust Connection: One 3 in (76 mm) port
150 CFM @ 6 in static pressure (255 m3/hr at 1.5 kPa)
