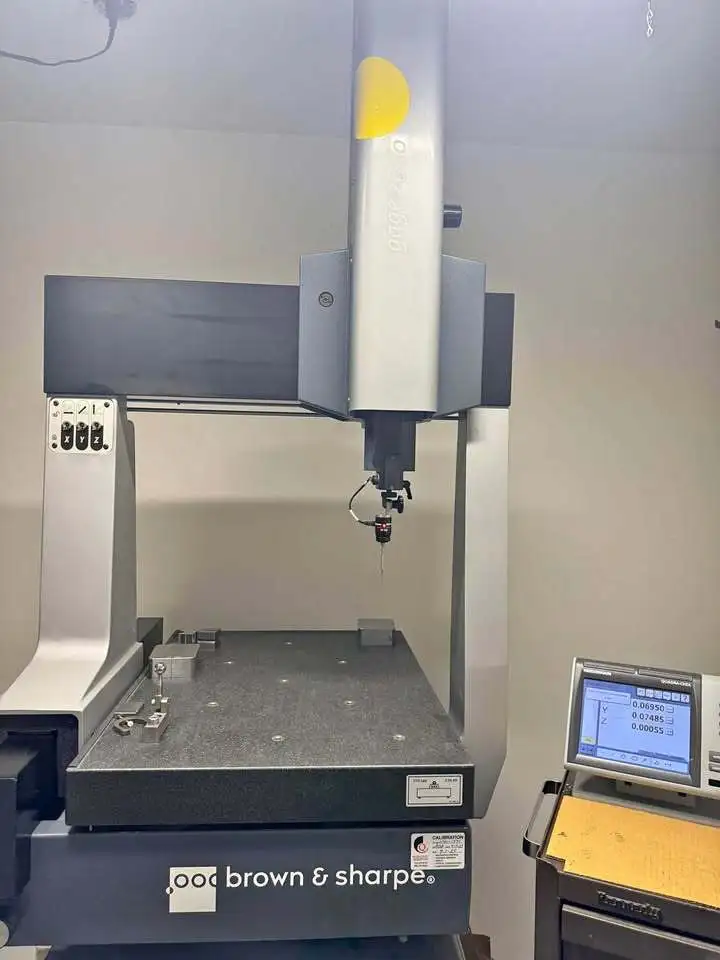

Brown & Sharpe Gage 2000 Coordinate Measuring Machine

X-Axis Work Capacity: 22"
Y-Axis Work Capacity: 29 1/2"
Z-Axis Work Capacity: 19"
X-Axis Measuring Range: 18"
Y-Axis Measuring Range: 20"
Z-Axis Measuring Range: 16"
Max. Load on Table: 500 lbs.
X-Axis Linear Displacement Accuracy: .0002"
Y-Axis Linear Displacement Accuracy: .0002"
Z-Axis Linear Displacement Accuracy: .0002"
Volumetric Performance (Performance/Ball Bar Length): .0004"/12.8"
Repeatability: .00016"
Overall Dimensions: 36" x L x 38" x W x 65"
Overall Weight: approx. 500 lbs.
Equipped With:
Desktop Computer, Software, and Desk
Renishaw Touch probe Model TP20
