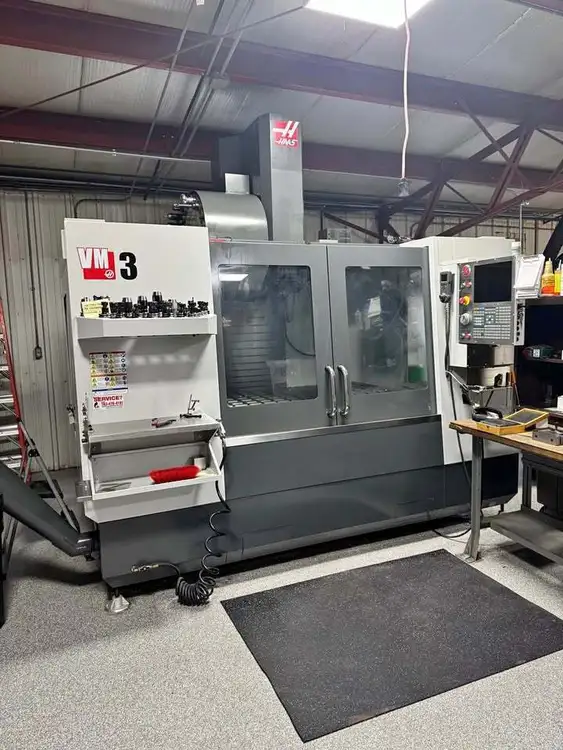

Haas Model VM3 Vertical Machining Center (2015)

Haas Model VM3 Vertical Machining Center
X Axis: 40 " 1016 mm
Y Axis: 26 " 660 mm
Z Axis: 25 " 635 mm
Spindle Nose to Table (\ max): 29 " 737 mm
Spindle Nose to Table (\ min): 4 " 102 mm
TABLE: S.A.E.: METRIC
Length: 54 " 1372 mm
Width: 25 " 635 mm
T-Slot Width: 5/8 " 16 mm
T-Slot Center Distance: 3.937 " 100.00 mm
Number of Std T-Slots: 13 in Y, 6 in X 13 in Y, 6 in X
Max Weight on Table: (evenly distributed): 4000 lb 1814 kg
SPINDLE: S.A.E.: METRIC
Max Rating: 30 hp: 22.4 kW
Max Speed: 12,000 rpm: 12,000 rpm
Max Torque: 90 ft-lb @ 2000 rpm 122 Nm @ 2000 rpm
Drive System: Inline Direct-Drive Inline Direct-Drive
Taper: CT or BT 40 CT or BT 40
FEEDRATES: S.A.E. METRIC
Rapids on X: 710 in/min 18.0 m/min
Rapids on Y: 710 in/min 18.0 m/min
Rapids on Z: 710 in/min 18.0 m/min
Max Cutting: 500 in/min 12.7 m/min
AXIS MOTORS: S.A.E. METRIC
Max Thrust X: 4100 lb 18238 N
Max Thrust Y: 4100 lb 18238 N
Max Thrust Z: 4100 lb 18238 N
TOOL CHANGER: S.A.E. METRIC
Type: SMTC SMTC
Capacity: 24+1 24+1
Max Tool Diameter (adjacent empty): 5.0 " 127 mm
Max Tool Diameter (full): 3.0 " 76 mm
Max Tool Length (from gage line): 13 " 330 mm
Max Tool Weight: 12 lb 5.4 kg
Tool-to-Tool (avg): 2.8 sec 2.8 sec
Chip-to-Chip (avg): 3.6 sec 3.6 sec
GENERAL: S.A.E.: METRIC
Air Required: 4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity: 55 gal 208 L
