| size | 19.7" x 19.7" Pallet | 19.7" x 19.7" Pallet |
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 31.5" | 800.1 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | 50 | 50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (Makino Professional 5 Control) | CNC (Makino Professional 5 Control) |

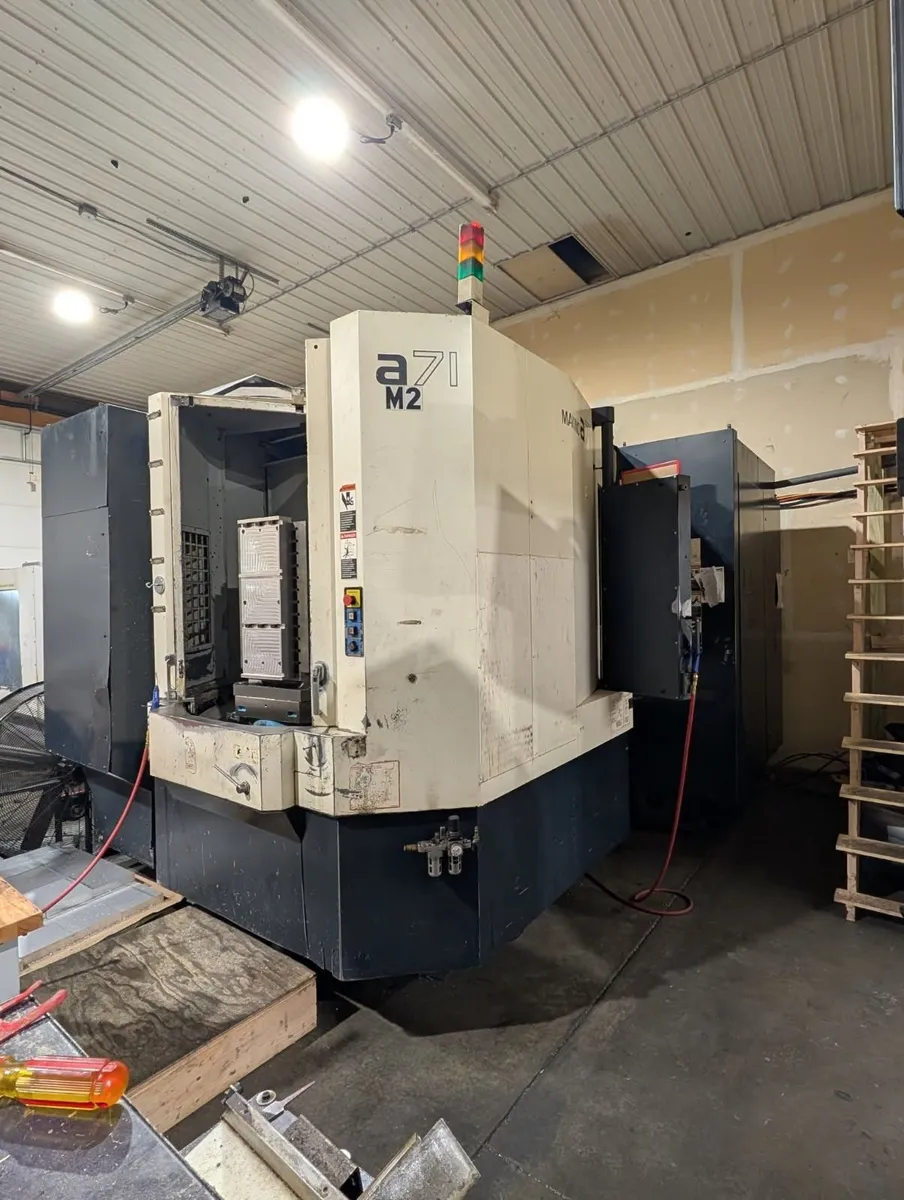

Makino a71 4 Axis Horizontal Machining Center (2008)
X-Axis Travel: 28.7″
Y-Axis Travel: 28.7″
Z-Axis Travel: 31.5″
Pallet Size: 19.7″ x 19.7″
Max. Payload: 1,540 lbs.
Max. Workpiece Size: 31.5″ x 39.4″
Max. Workpiece Weight: 1,543 lbs.
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
ATC: 60
Tool Change Time Tool to Tool: 1.7 seconds
Tool Change Time, Chip to Chip: 3.2 seconds
Max. Tool Length: 17.7″
Max. Tool Diameter (w/ adjacent pockets empty): 11.8″
Max. Tool Weight: 44 lbs.
Cutting Feedrate: 1969 IPM
Rapid Traverse (X, Y, Z): 1969 IPM
50 taper, 50hp, 10k spindle, 60 ATC, Tombstones, Probe, Makino Professional 5 CNC Control
