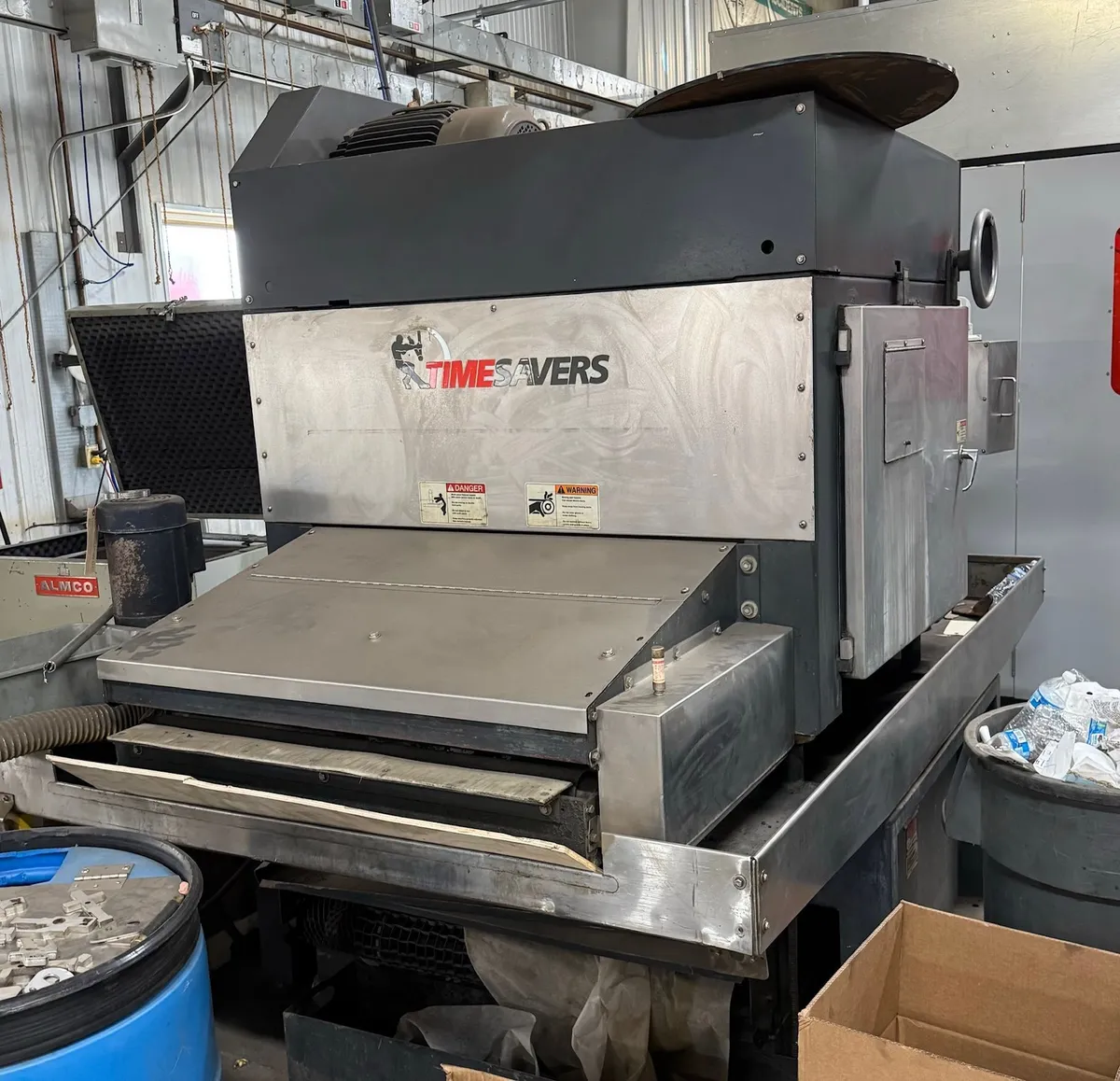

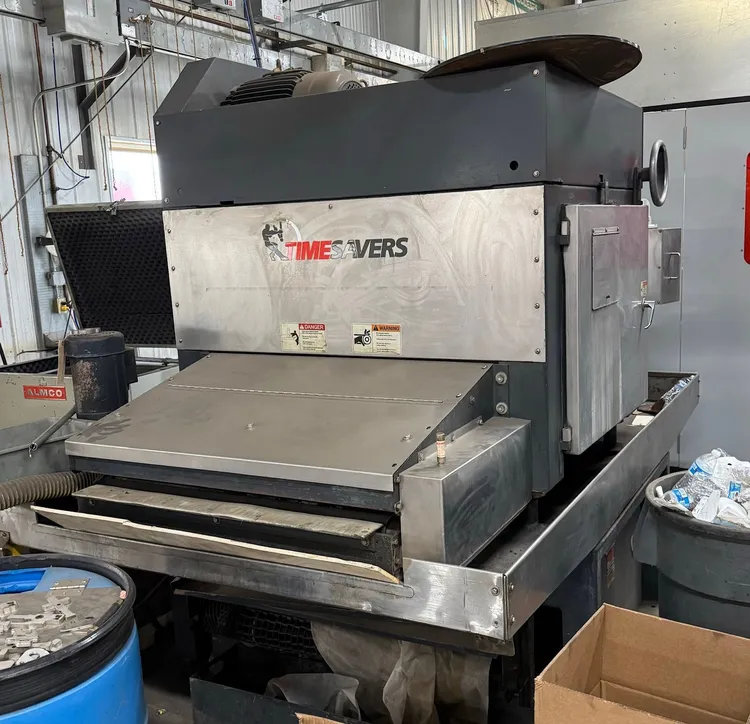

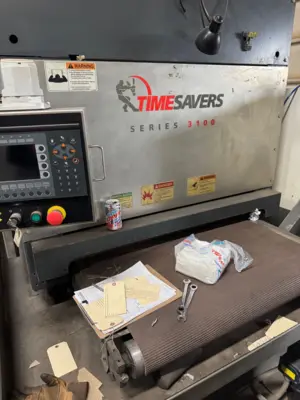

Timesavers 3121-13-04 Series 3100 37" Belt Grinder (2004)
Have one to sell?
ConditionUsed
1 available
Timesavers 3121-13-04 37" Series 3100 Belt Grinder (2004)
Working Width: 36″
Belt Width: 37″
Belt Length: 60″
Feed Belt Speeds: 15 – 45 F.P.M.
Material Thickness (passline): 0-8″
Heads: (2) Drum & Brush
Drum Diameter: 6″
Brush Diameter: 6″
Approximate Weight (machine Only): 8500 Lbs.
Approximate Dimensions: 76” L X 104” W X 88” H
Disc Brakes On Main Motor
E-700 Control
Color Graphical Interface (hmi)
Digital Thickness Readout
Double Infeed & Outfeed Holdown Rolls
15-45 Fpm Feed Speed A/c (reversing)
Auto Lube On High Speed Bearings
Air Knife Dryer
Conveyor Belt Tracking
Coolant/filter System (apf 40lp)
Stainless Steel Construction Where Needed
Hour Meter
Main Motor Load Meter
0-8″ Opening (38″ Constant Passline)
23″ Infeed Loading Area
Four (4) Bed Jacks
Quick Release Outbound Support
Through-Beam Abrasive Belt Tracking
8″ Min. Part Length
Infeed Stop Bar
Ul Listed Controls
