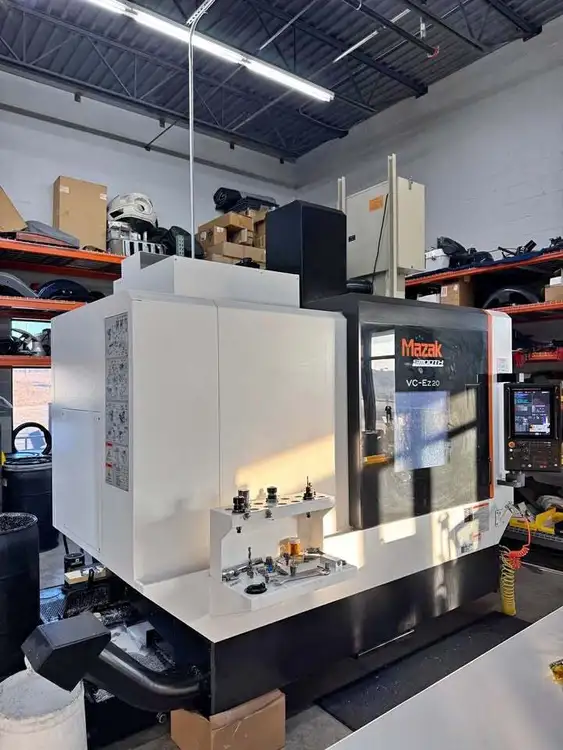

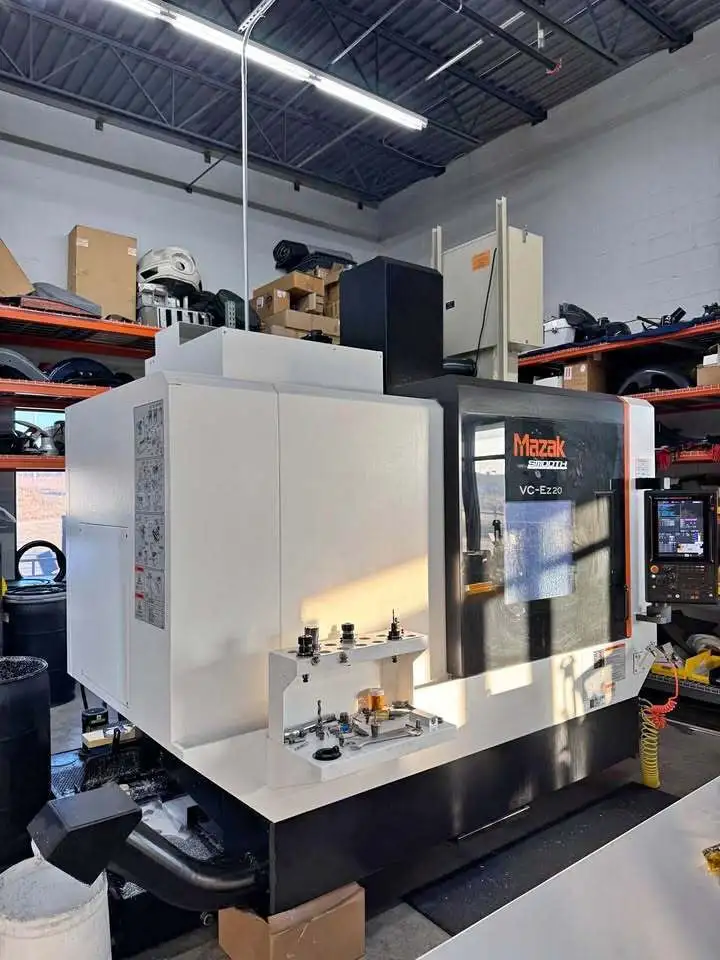

Mazak VC-EZ20 Vertical Machining Center (2022)

Mazak VC-EZ20 Vertical Machining Center (2022)
Capacity Table width in / mm 49.21 / 1,250
Table depth in / mm 19.37 / 492
Table Weight Capacity Table Weight Capacity lbs / kg 2,204 / 1,000
Spindle Face to Table Surface Min - Max in / mm 3.93 / 100 - 28.93 / 735
Rapid Rates Rapid Rates ipm 1,654
Spindle Spindle Taper CAT-40
Maximum Speed rpm 12,000
Motor Output (5-minute rating) hp / kw 25 / 18.5
Torque ft-lbs / N-m 70.4 / 95.5
Magazine Number of Tools Standard / Optional 30 / 50
Feed Axes Travel (X Axis) in/mm 41.34 / 1050
Travel (Y Axis) in/mm 20.08 / 510
Travel (Z Axis) in/mm 25 / 635
Maximum Tool Diameter Without adjacent pockets empty in / mm 2.95 / 75
With adjacent pockets empty in / mm 5.94 / 150
Maximum Tool Length in / mm 13.78 / 350
Maximum Tool Weight lbs / kg 17.64 / 8
Tool Change Time Tool to tool sec 2.2
Dimensions Machine Depth in / mm 107.81 / 2,738
Machine Width in / mm 120.28 / 3055
Machine Height in / mm 118.94 / 3021
Machine Weight lbs / kg 13,227 / 6,000
