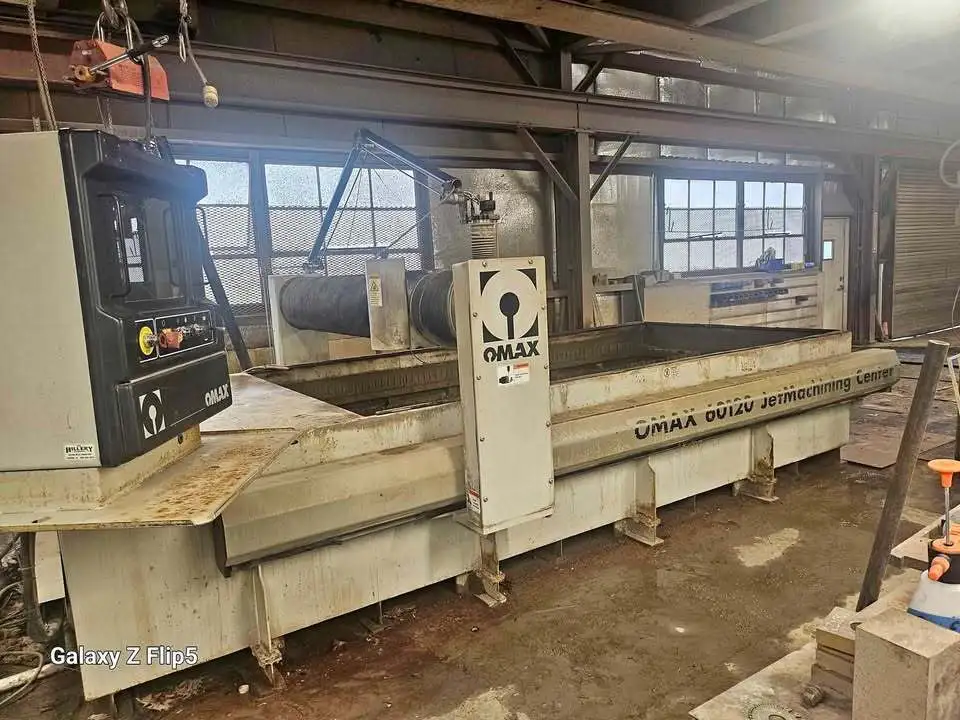

Omax 60120 5' x 10' Abrasive Waterjet (2012)

Omax 60120 5' x 10' Abrasive Waterjet (2012)

Material Support Slats 4" x 1/8" Galvanized Steel
Maximum Supported
Material Load
400 lbs/sq ft (1,950 kg/sq
meter)
Electrical Requirements 3-Phase, 380-480 VAC ±10%,
50-60 Hz
Noise Level Below 80 dBA at one meter for
submerged cutting
Speed 180 in/min (4,572 mm/min)
Linear Positional Accuracy* ±0.001” (±0.025 mm)
Repeatability* ±0.001” (±0.025 mm)
Ballbar Circularity* ±0.0025” (±0.064 mm)
Footprint (with controller) 18’9” x 9’2”
(5,715 mm x 2,794 mm)
Weight (tank empty) 6,200 lb (2,812 kg)
Height (with scissor plumbing) 9’7” (2,921 mm)
Operating Weight 23,200 lb ( 10,545 kg)
WORK ENVELOPE
X-Y Cutting Travel* 10’6” x 5’2”
(3,200 mm x 1,575 mm)
Z-Axis Travel* 8” (203mm)
Table Size 12’0” x 6’5”
(3,658 mm x 1,956 mm)
• Brushless servo motors
• Pre-loaded ball screw with
recirculating ball bearings
and hardened precision
ground ways in Y-Axis
• Closed loop, digital drives
• Intelli-TRAX drive technology
with precision linear encoders in
X-Axis
• Precise Motorized Z-Axis
