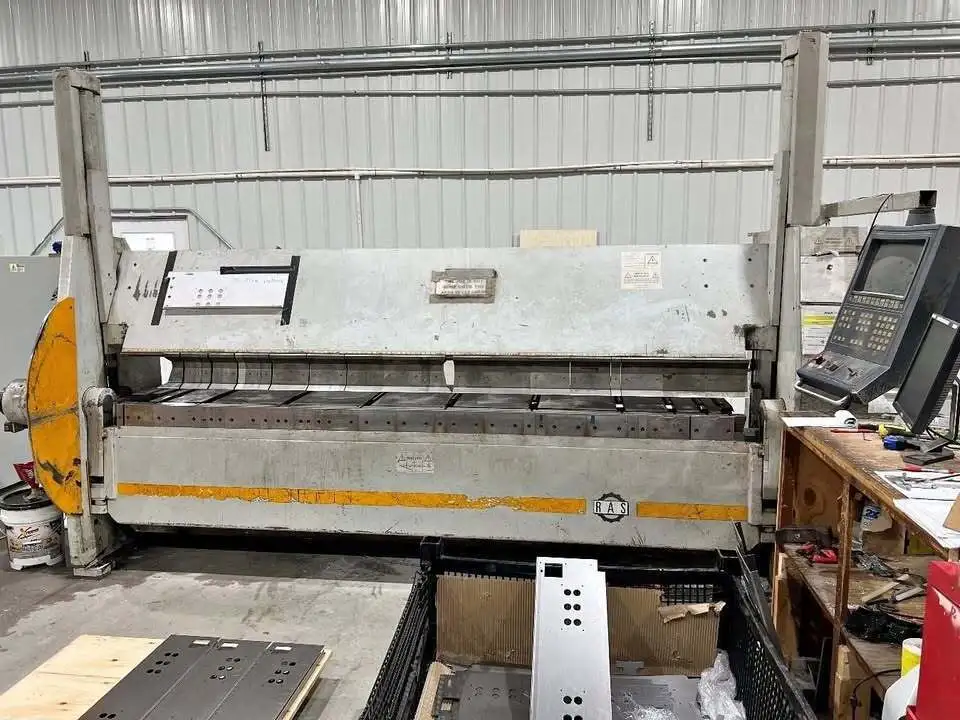

RAS 74.30 CNC Folding Machine

RAS Model 74.30 Hydraulic CNC Folding Machine

Max. Forming Capacity at Full Length: 9 Gage (Mild Steel)
Max. Length of Forming: 126
Min. Flange Height: 6 x gauge
Clamping Beam Max. Speed Up: 3.60/sec
Clamping Beam Max. Speed Down: 1.57/ sec
Max. Folding Speed: 74/sec
Folding Angle Setting Range: 0-180 degree
CNC Folding Beam Stroke: 3.15
CNC Lower Beam Stroke: 3.15
Clamping Beam Stroke: 15.75
Backgauge Positioning Accuracy: +/-.004
Backgauge Max. Positioning Time: 3 sec
Backgauge Min. Position: .394
Backgauge Max. Position: 120
Current Electrics: 460/3/60
