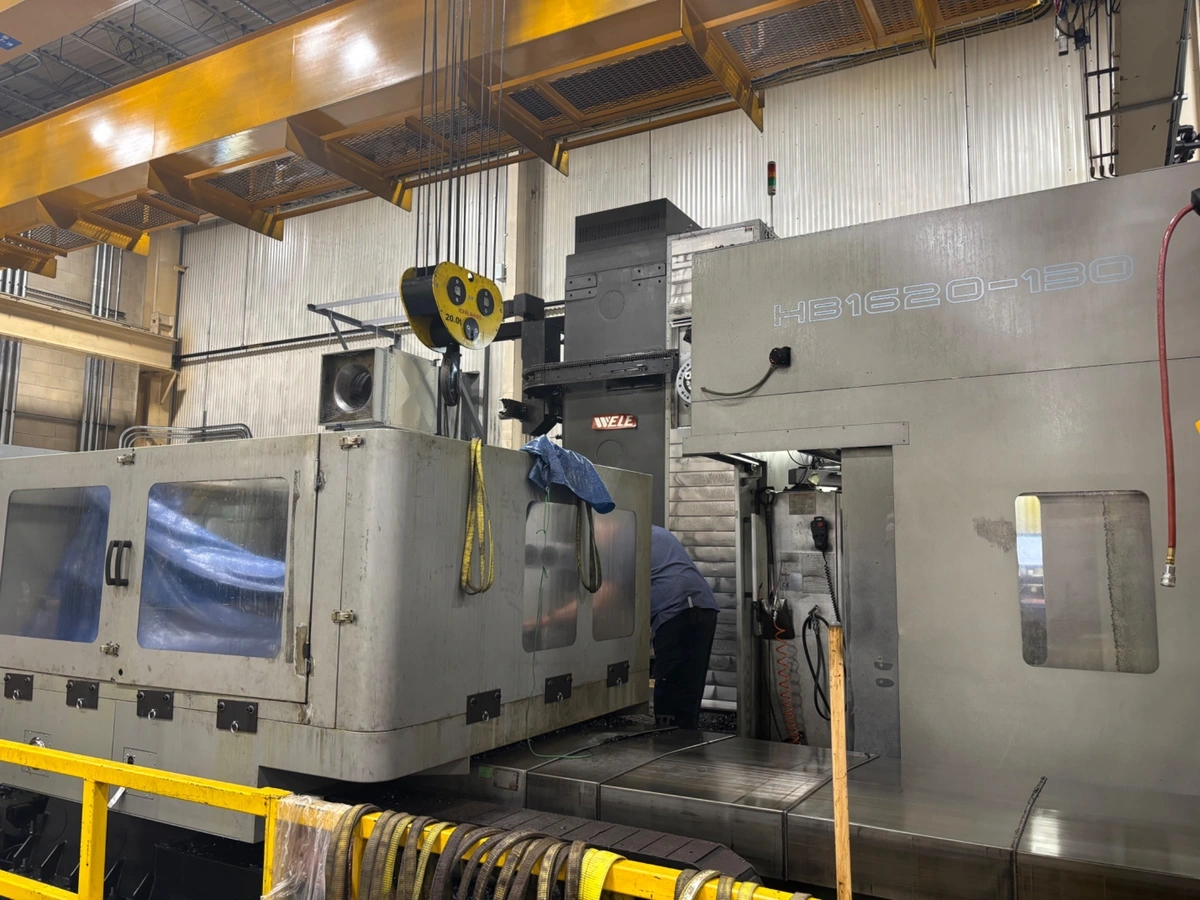

Wele HB1620-130 CNC Table Type Boring Mill (2019)

Wele HB1620-130 CNC Table Type Boring Mill (2018)
Spindle Diameter
5.12"
Spindle Taper
Bt #50
Vertical Head Travel, Y-Axis
82.67"
Column Travel,(Left & Right), X-Axis
157.48"
Spindle Travel, W-Axis
27.55"
Table Travel, (In & Out), Z-Axis
59.05"
Built In Rotary Table
70.86" X 78.74""
Table Index
.001
Distance From Spindle To Table Top
3.1"-30.7"
Table Load Capacity
26,400 Lbs.
Spindle Speeds, Max
2,500 Rpm
Spindle Motor
30 Hp / 35 Hp
Rapid Traverse Rate (X/Z)
590.55 Ipm
Rapid Traverse Rate (Y)
472.44 Ipm
Cutting Feed Rate
0.039-196.85 Ipm
Approximate Dimensions
296"X 264" X 175"
Approximate Weight
77,200 Lbs.
