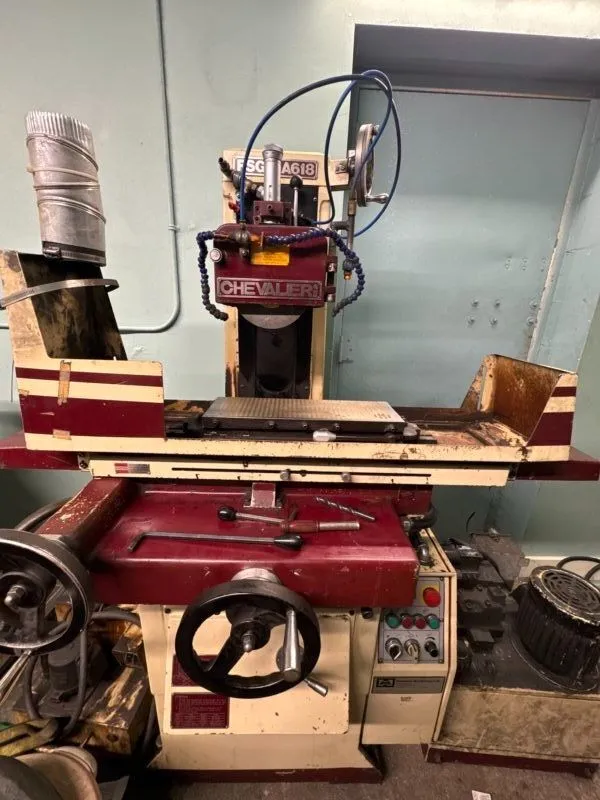

Chevalier FSG 2A618 Horizontal Surface Grinder
Have one to sell?
ConditionUsed
1 available
Chevalier FSG 2A618 Horizontal Surface Grinder
Chevalier FSG 2A618 Horizontal Surface Grinder
Capacity Grinding length 18.0"
Grinding width 6.0”
Distance table to centerline of wheel 17.7"
Max. table load 462 lbs.
Table Table size 5.9" x 18.1"
Max. table travel - manual 20.1"
Table speed (varible) 16 ~ 82 fpm
Traverse movement (Z) Feed speed 37 ipm
Auto traverse movement 0.02" ~ 0.24"
Max. manual travel 7.1"
Spindle Spindle speed 60 Hz 3,450 rpm / 50 Hz 2,850 rpm –
Spindle motor 2 HP
Wheel dimension OD x Width x Bore Ø 8” × 0.5” × Ø 1.3”
Machine floor d.m space 75”x63”x84”
