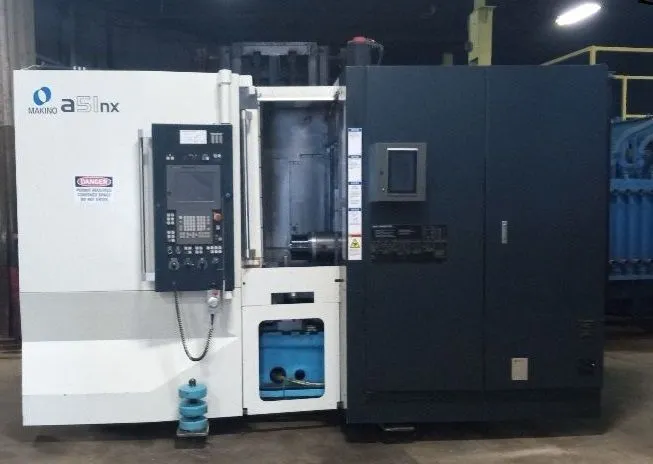

Makino A51NX Horizontal Machining Center (2012)
Have one to sell?
ConditionUsed
1 available
a51nx Built for High Performance Machining
The Makino a51nx is a 400mm horizontal machining center that builds on the highly successful a51 platform with key high performance machining technologies that take productivity, accuracy and machine reliability to the next level.
Pallet size: 15.7” x 15.7”
Travels: 22” x 25” x 25.2” in Z
Rapid Feed rates: X,Y, Z: 2,362 ipm
Max. feed rates: X,Y,Z: 1,968 ipm
B1: 47 rpm
Max. work piece: 1,100 lbs.
Spindle HP: 50
Spindle taper: Cat 40
Spindle ranges: 2
Spindle rpm: 14,000
Spindle torque: 240 Nm
ATC capacity: 60
Fanuc Professional 5 controls
Hosnic Chip conveyor
Coolant thru spindle
Full 4th axis
1G axis acceleration
One piece way covers
Step down transformer
Broken Tool Detection
