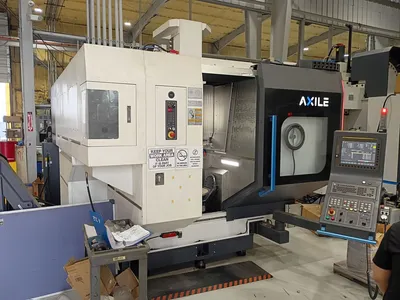

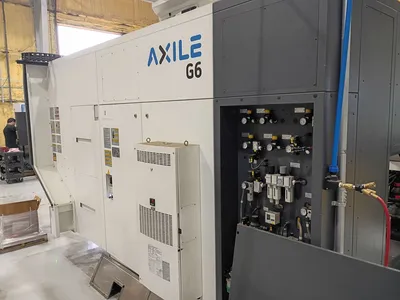

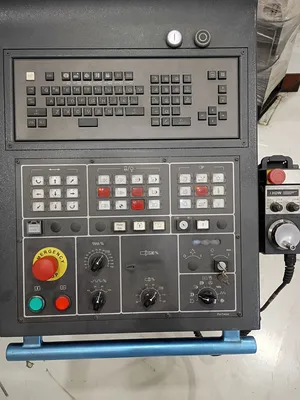

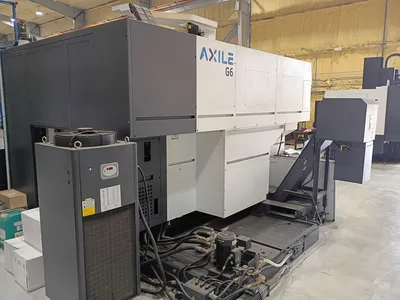

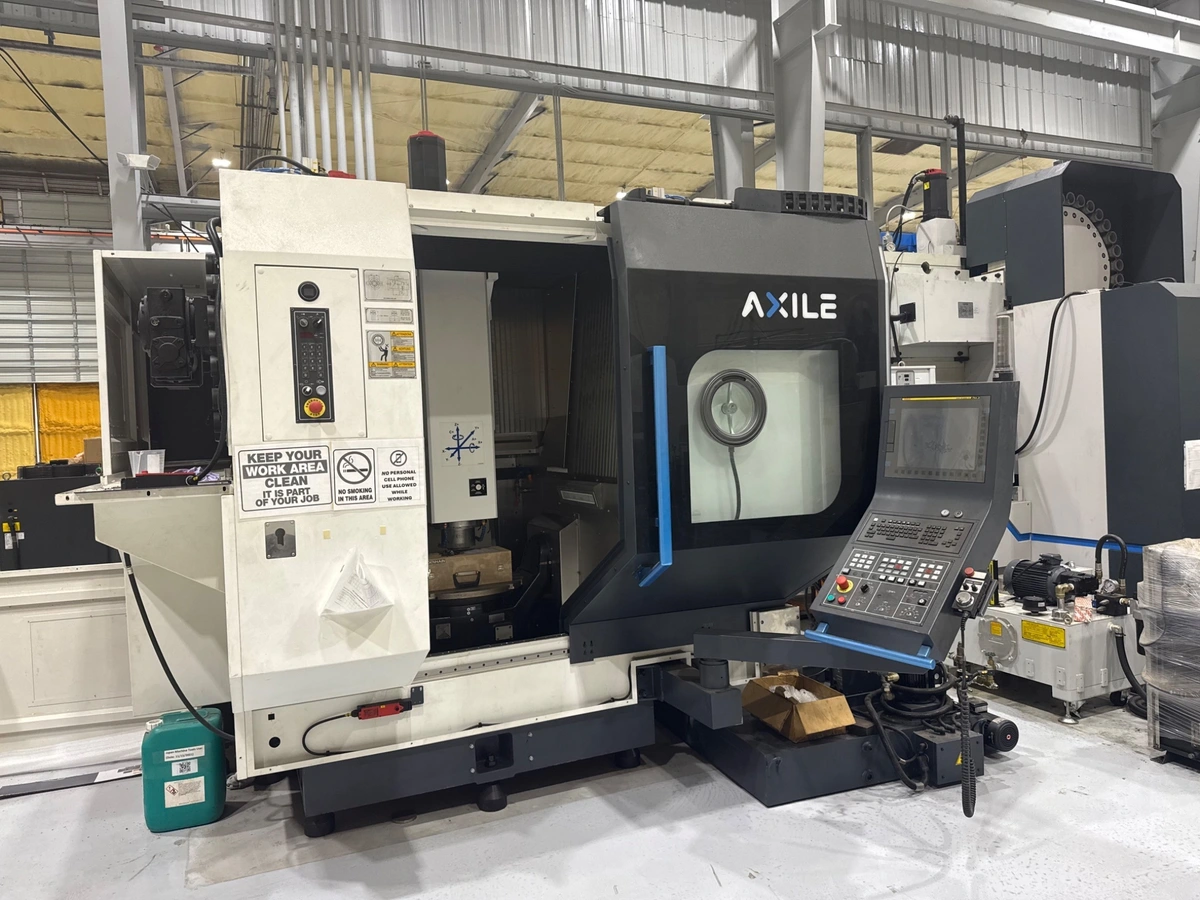

Axile G6 5 Axis High Speed Gantry Type Machining Center (2021)
Have one to sell?
ConditionUsed
1 available
The AXILE G6 provides a range of capability including 5-faces & Simultaneous machining, multi-tasking machining with milling & turning and all other regular machining tasks.

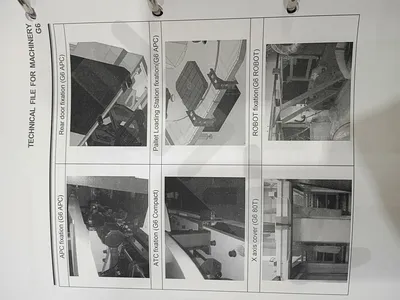

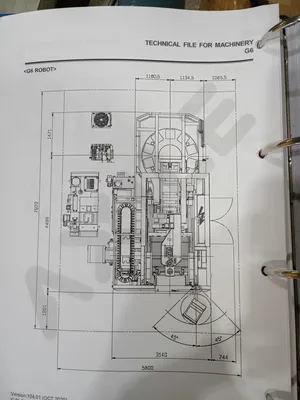

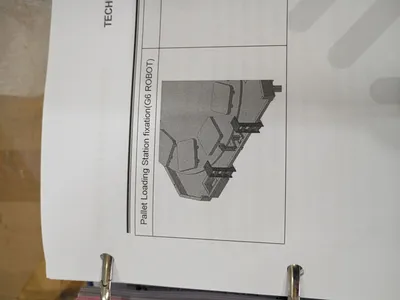

The G6 Robot offers simplified automation solution.
A perfect machine for your operation.

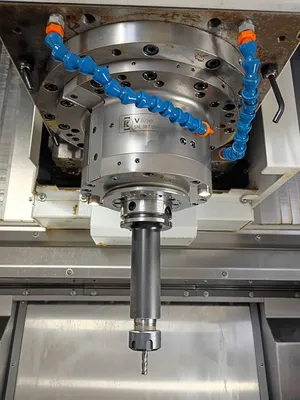

- High performance built-in spindle: 20,000 RPM
- AC servo motor provides extreme high torque, power and axis force

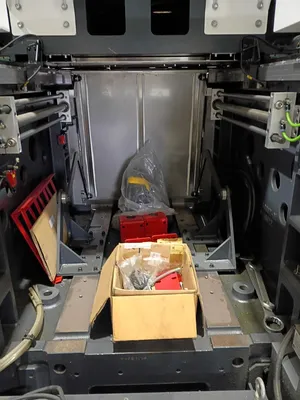

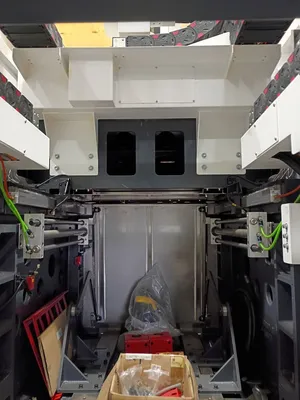

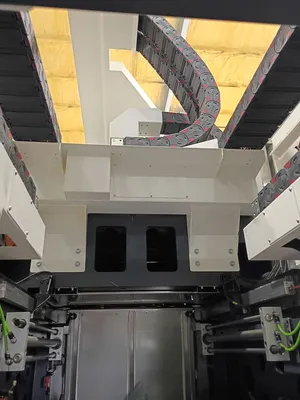

- Gantry construction of cast iron base offers high rigidity, precision performance and stress release. The solid and rigid machine frame is made from Meehanite licensed casting.

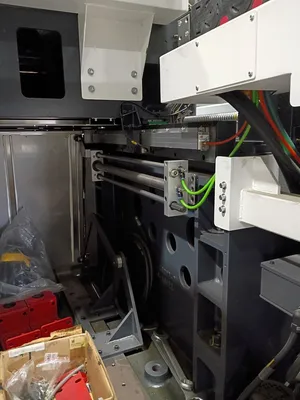

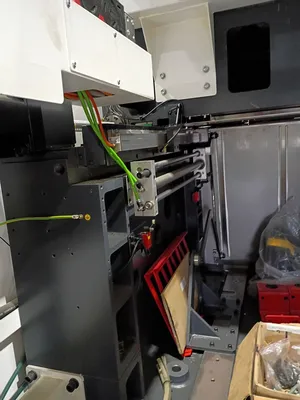

- 45mm roller type linear guideways on 3 axes and 3pcs linear guideways on z axis. (patented)
- C3 double nuts high-class precision ballscrews.

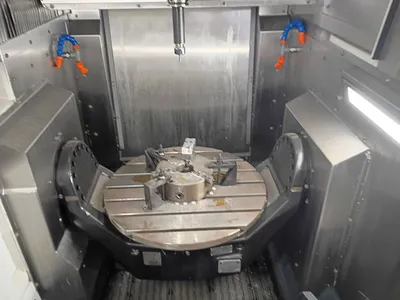

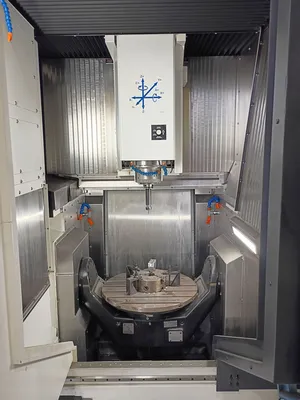

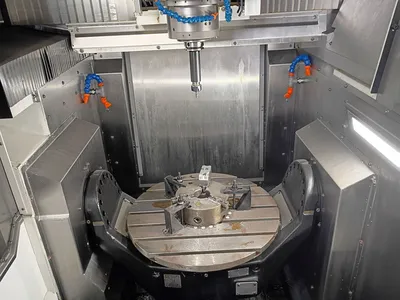

- High accuracy rotary table is driven and tilted by high torque motors. Large working space with workpiece loading at 600kg.
- High precision encoders on A axis & C axis.
- Various ATC packages for choice with Easy tool loading design

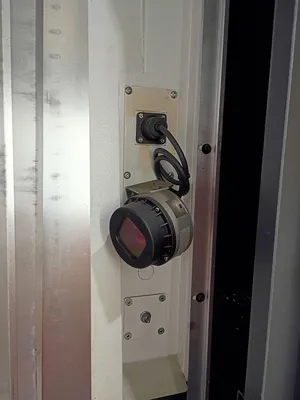

- Fully enclosed guarding.
- Easy workpiece loading design.

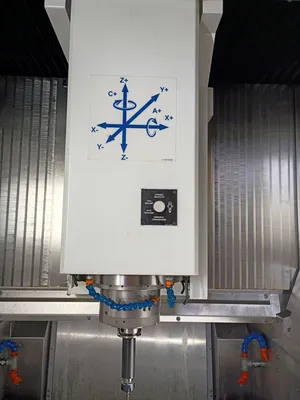

- 5 axes simultaneous machining function.

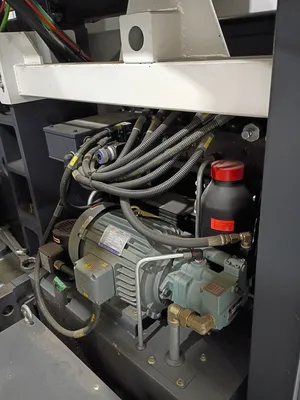

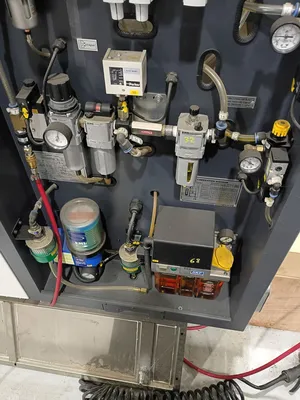

- Auto lubrication timing control
- Chip removal system including flushing device inside and on bottom guarding.

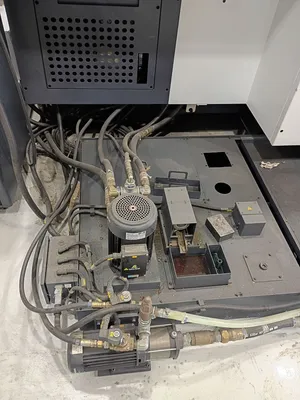

- Coolant system with check valve.
- Oil skimmer device.

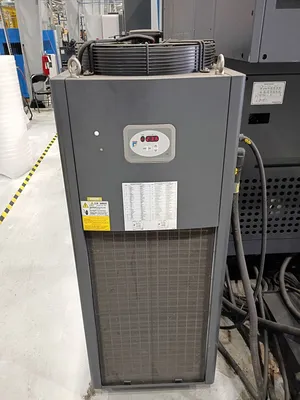

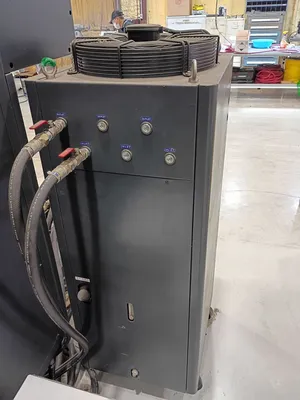

- Water chiller device.

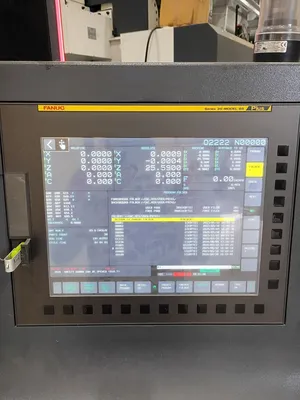

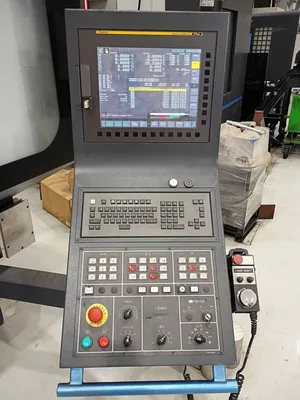

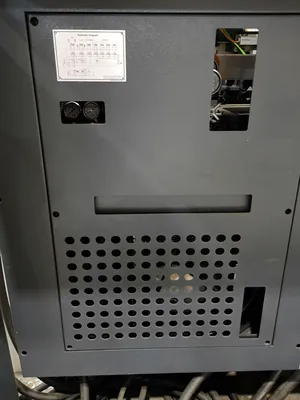

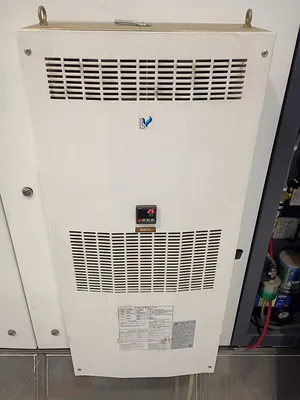

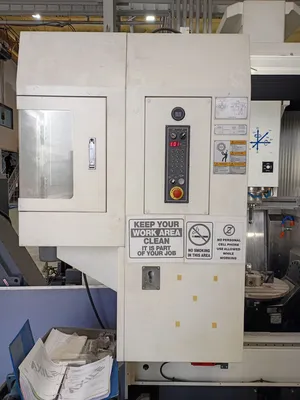

- Low voltage circuit control system
- Heidenhain Linear scale
- BLUM tool setter system integrated in the table
- Kinematics + reference ball

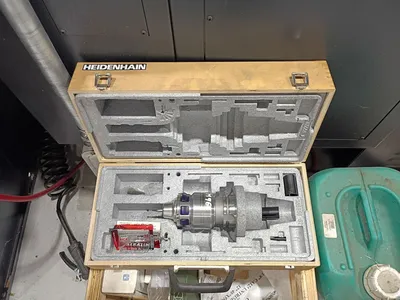

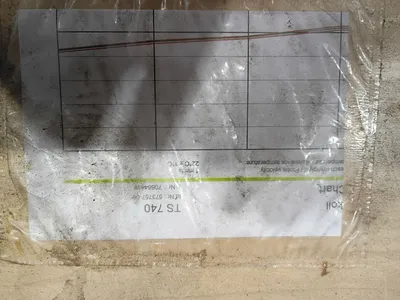

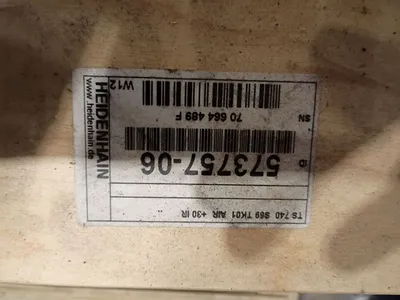

- Workpiece probe Heidenhain TS-740+ SE-640
- Vibration detection
- Spindle thermal growth control
- Air through spindle (Wet/dry rotary joint)

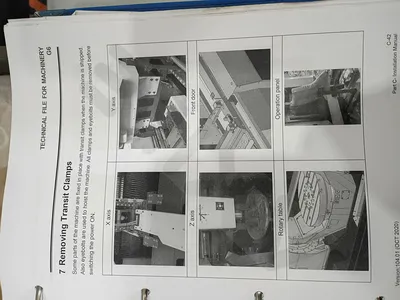

Axile G6 5 Axis High Speed Gantry Type Machining Center (2021)
High Dynamic Table
Rotary Table Top Round 600 (23.6) mm(in)
Tilting Axis - A + 120 / - 120 degree
Rotary Axis - C 360 degree
Rotation Driving System-A axis Torque Motor Driven
Rotation Driving System-C axis Torque Motor Driven
T-slot (w / pitch / #) 14 / 80 / 7 (0.55 / 3.15 / 7) mm(in)
Max Workpiece ⌀ 822 (32.3) *with restrictions mm(in)
Max. table load 600 (1,323) Kgs(lbs)
Travel
X axis 650 (25.6) mm(in)
Y axis 850 (33.5) mm(in)
Z axis 500 (19.7) mm(in)

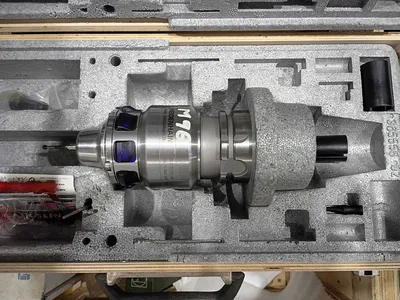

Spindle

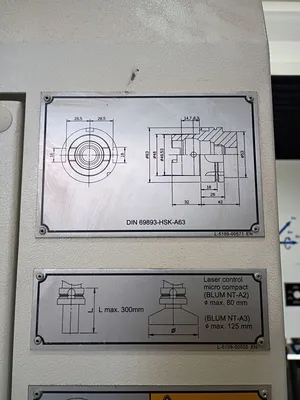

Spindle taper HSK-A63 for Milling / HSK-T63 for turning
Transmission Asynchronous (integral)
Spindle speed 20,000 RPM
Motor output S1-S6, 15k 30 / 46 (40 / 61) kW(hp)
Motor output S1-S6, 20k 25 / 40 (33 / 53) kW(hp)
Motor output S1-S6, 36k 20 / 26 (26 / 34) kW(hp)
Spindle Torque S1-S6, 15k 130 / 200 (95.9 / 147.5) Nm (Ft/lbs)
Spindle Torque S1-S6, 20k 87 / 135 (64.2 / 99.5) Nm (Ft/lbs)
Spindle Torque S1-S6, 36k 10.4 / 13.5 (7.67 / 9.96) Nm (Ft/lbs)
Distance between spindle center to table surface 150~650 (5.9~24.8) mm(in)
Tool Magazine
Tool Change Mode (Standard) Fixed pot carrousel with arm-type changer
Magazine Capacity 80
Tool Change Mode (Optional) Random Type Chain
Magazine Capacity 80
Max Tool Length 300 (11.8) mm(in)
Max Tool Ø 75 (2.95) mm(in)
Max Tool Ø (Adj. Pocket empty) 125(4.92) mm(in)
Max Tool Weight 8 (17.6) kg(lbs)
Axis feed rate
X/Y/Z Rapid Traverse 36 (1417) m/min (in/min)
Max Speed – A Axis 100 RPM
Max Speed – C Axis 200 RPM
Axes Transmission
X/Y/Z ballscrews Ø 40mm x P12 x C3
X/Y/Z Linear Guideway Type 45 / 45 / 45 (Roller) mm
X/Y/Z Guideway Distance 500 / 1110 / 265 mm
Accuracy (X/Y/Z) – German Standard VDI / DQG 3441
Measuring system Direct / Glass Scales
Repeatability 0.005 (0.0002) mm(in)
Positioning Accuracy 0.005 (0.0002) mm(in)
Accuracy (A/C)
Measuring system Direct / Rotary Scale
Repeatability +/- 5” Arc/Sec
Positioning +/- 5” Arc/Sec

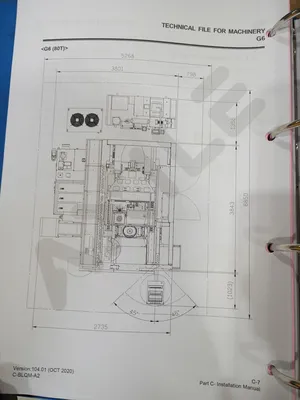

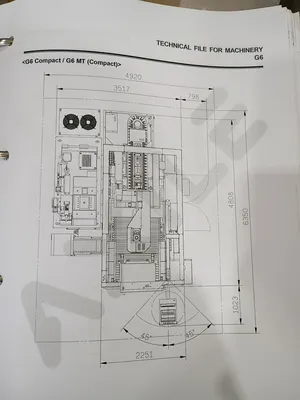

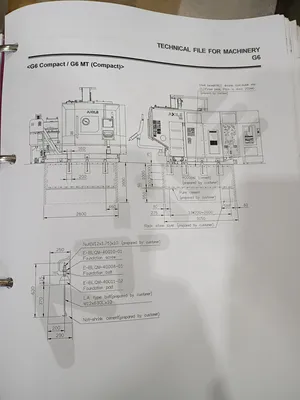

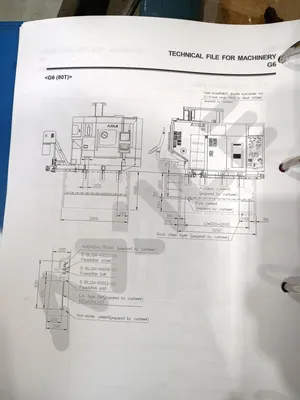

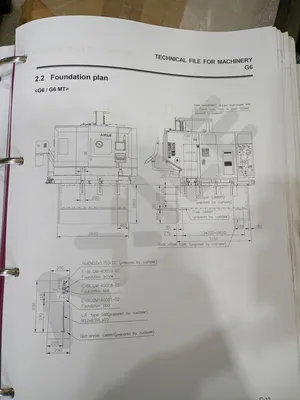

Dimensions & Service Requirements

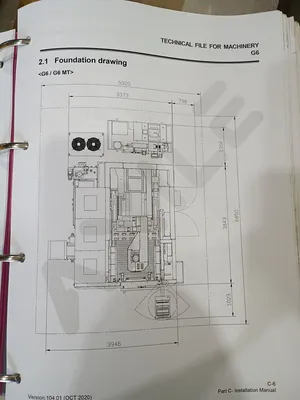

Foot Print 3102 x 3931 (10.17 x 12.89) mm(ft)
Height 2970 (9.74) mm(ft)
Weight 12,000 (26,455)

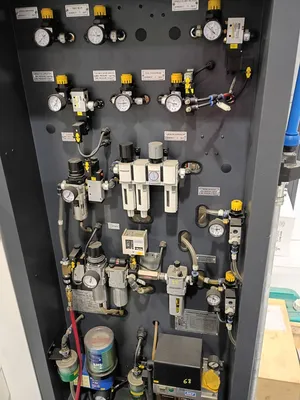

Air Pressure Requirement 7 Bar(psi)

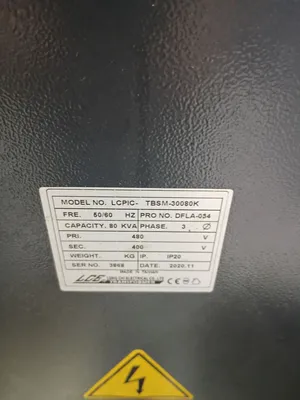

Total power consumption 60 KVA
Max Coolant tank Capacity 400 L
