| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |

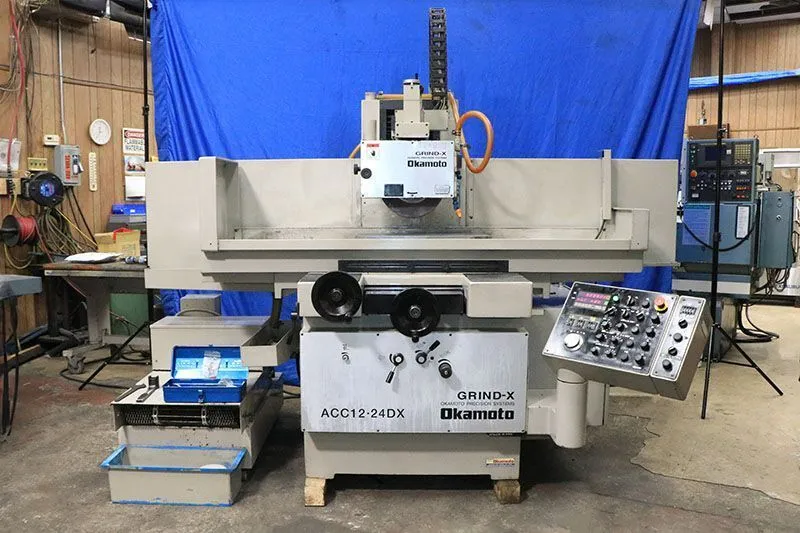

Okamoto Model ACC12.24DXV Hydraulic Horizontal Surface Grinder (2015)
Nominal Grinding Capacity ......... 12" X 24"
Maximum Height Under 12" Wheel .... 13.7"
Table Speed, Infinitely Variable .. Up To 82' Fpm
Max. Longitudinal Table Movement,
Manual ........................... 30"
Auto Cross Feed Increment ......... 0.002" To .80"
Auto Coninous Crossfeed ........... 4' To 40' Fpm
Crossfeed, Manual,
Hand Feed Per Rev. ............... 0.25"
Grad. Of Handwheel ............... 0.001"
Max. Crossfeed, Manual ............ 14"
Auto Incremental Downfeed
Increments ....................... 0.00005" To .0015"
Power Rapid Wheel Positioning
Rate ............................. 16" Ipm
Spindle Motor ..................... 5 H.P.
Wheel Size ........................ 12" X 1.5" X 5"
Approx. Dims. For Operation ... 107" X 76"D X 70"H
Approx. Machine Weight ............ 5,500 Lbs.
"DXV" Programmable Electronic
Auto Incremental Downfeed
-Servo Driven Downfeed
-Auto Incremental Downfeed For Both Surface
& Plunge Operations
-Dual Rate Auto Downfeed With Coarse & Fine Selections
-Digital Display For Both Cross & Vertical Axes
-Sparkout Passes (0 To 5) W/Auto Table Park At
Completion Of Grind Cycle
-Electronic Handwheel For Manual Vertical
Movement, With Each Grad. Equivalent
To 0.00001", .0001" Or .001"
-Power Rapid Wheel Positioning
-Fully Automatic Grinding Cycle With
Programmable Dress Interval
-Automatic Dress Cycle With Dress Compensation
- Allowing Wheel To Be Dressed During
Automatic Cycle At Desired Interval.
-Automatic Wheel Wear Compensation In
Automatic Cycle
- Allows For Greater Machining Accuracy.
Hydraulic Table Traverse
Automatic Crossfeed
12" X 24" O.S. Walker
"Lbp" Fine-Division Electro-Magnetic Chuck
Variable Hold Neutrofier Control & Demagnetizer
Coolant System With Paper Filtration
Self-Contained Hydraulic System
5 H.P. Spindle Motor/3/60/220-440 Volts
Machine Is Wired Presently For 220 Volts
This equipment has been sold. Similar equipment available now is shown below.
