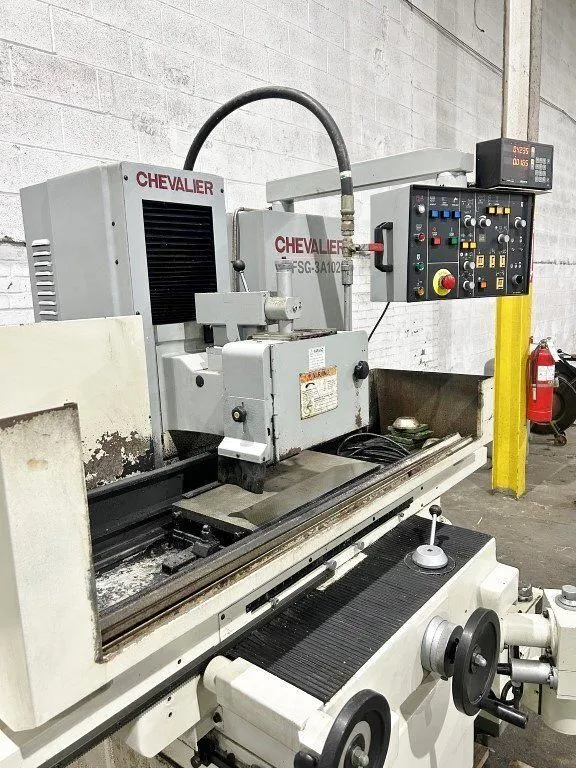

Chevalier FSG-3A1020 Hydraulic Surface Grinder (2005)

Chevalier FSG-3A1020 Hydraulic Surface Grinder (2005)
Nominal Grinding Capacity ................... 10" X 20"
Max. Longitudinal Table Travel, Hydraulic ... 22- 7/8"
Max. Longitudinal Table Travel, Manual ...... 24- 3/8"
Max. Crossfeed Travel, Automatic ............ 11- 7/16"
Max. Crossfeed Travel, Manual ............... 11- 3/4"
Dist. From Spindle Center To Table .......... 21- 1/2"

Variable Table Speed, Hydraulic .......... 16' To 82' Fpm

Automatic Crossfeed Increment ............ 0.02" To 0.4"
Power Rapid Traverse (Cross) ................ 48" Ipm
Crossfeed Handwheel, Per Graduation ......... 0.001"
Per Revolution .............................. 0.02"

Automatic Incremental Downfeed ......... 0.0001" To .002"
Auto Downfeed Dial Per Graduation ........... 0.0005"
Per Revolution .............................. 0.1"
Microfeed ................................... 0.0001"
Rapid Traverse Rate ......................... 13" Ipm

Spindle Motor ............................... 3 Hp
Standard Grinding Wheel ......... 12" Dia. X 1- 1/4" X 3"B

Approx. Weight .......................... 3,306 Lbs.
Approx. Dimensions ...................... 85" X 48" X 65"H

Machine Features:
Fully Programmable Microprocessor Auto-Cycle
Control W/Digital Display
Automatic Incremental Downfeed (Plunge & Surface)
Sparkout Cycle W/Automatic Wheelhead Retraction
@ Completion Of Grind Cycle
Power Rapid Wheelhead Positioning
Hydraulic Table Traverse
Electronic Cross & Vertical Feeds
Micro-Downfeed (.0001" Grad.)
12" Grinding Wheel
