| Chuck / Table Dia | 40" | 1,016 mm |
| Swing | 43.3" | 1,099.8 mm |
| Maximum Cutting Diameter | 39.3 in | |
| Maximum Turning Length | 27.5 in | |
| Vertical Travel X | 30.1 in | |
| Horizontal Travel Z | 31.3 in | |
| RPM | 1,200 RPM | 1,200 RPM |
| Power | 49.6 hp | 37 kW |
| Control | CNC (Fanuc Oi-TD Control) | CNC (Fanuc Oi-TD Control) |
| Dimensions | 138" x 94" x 160" | 138" x 94" x 160" |
| Weight | 37500 | 37500 |

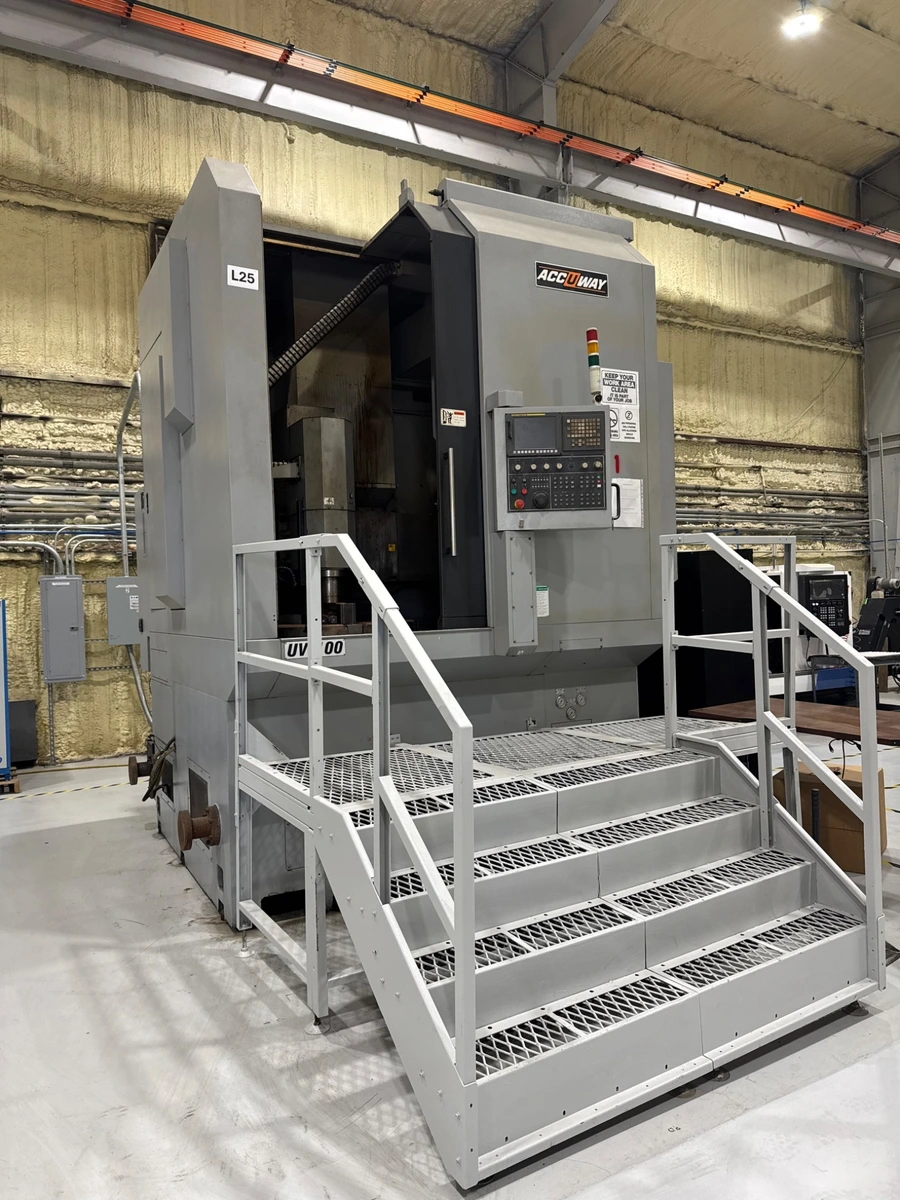

Accuway UV-100 Live Tool CNC VTL Vertical Turning Lathe (2013)
Swing Over Bed: 43.30″
Max Turning Diameter: 39.37″
Max Turning Length: 27.55″
Spindle Speed: 1200 RPM
Spindle Taper: BT50
Spindle Nose: A2-15
Chuck Diameter: 40″
X Axis: 30.11″
Z Axis: 31.49″
Turret: 12 Stations
Machine Weight: 37,500 LBS
Fanuc Oi-TD Control
Auto Strong V-240 40″ (3) Jaw Chuck
Live Tool
12 Position ATC
Stainless Steel Way Covers
RJ-45 interface
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
hydraulic chuck & cylinder
Single chain type chip conveyor + chip cart
Tool kit
Under 1000 Hours
This equipment has been sold. Similar equipment available now is shown below.
