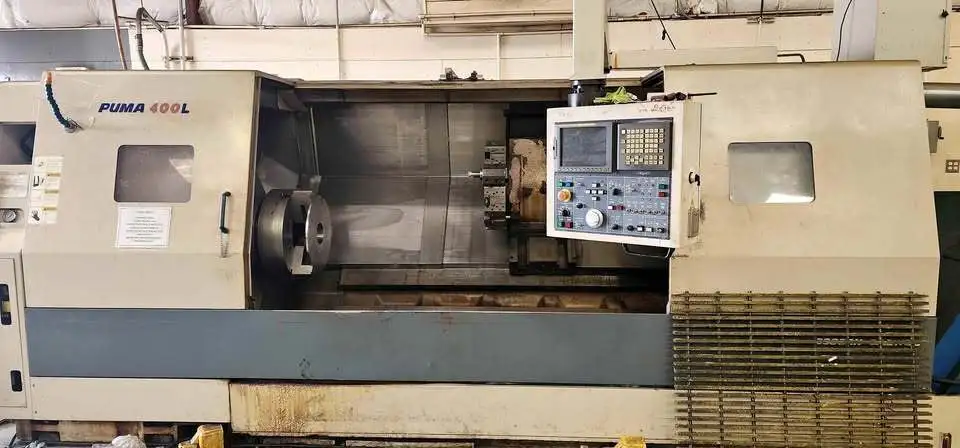

Doosan Puma 400LC 2-Axis CNC Lathe (2006)
Have one to sell?
ConditionUsed
1 available
Doosan Daewoo Model 400LC 2-Axis CNC Turning Center
Swing Over Bed: 30.3"
Swing Over Saddle: 23.2"
Maximum Turning Length: 81.7
Spindle Bore / Bar Working Diameter: 7.1" / 6.5"
Spindle Speed (Geared): 1,500 RPM
Spindle Nose: A2 #15
Main Motor: 50 HP
X / Z Axis Travels: 14.1"/ 84.8"
Rapid Traverse (X/Z Axis): 630/790 IPM
Turret: 10 Positions
Machine Dimensions: 210" X 94" X 89" TALL
Approximate Machine Weight: 25,000 LBS
Fanuc 21iTB CNC Control
Programmable Tailstock
Tool Presetter
21" 3-Jaw Hydraulic Chuck
Chip Conveyor
