The Live Tool Hyundai Kia SKT-28LM CNC Lathe is a high-performance machining solution tailored for precision and versatility in modern manufacturing. This robust lathe is equipped with a 10-inch chuck, live tooling, and a tailstock, making it ideal for handling complex machining tasks and high-volume production with ease. Additional features such as the presetter, chip conveyor, and parts catcher further enhance productivity by reducing downtime and streamlining operations. With a generous 3.7-inch spindle bore and 3-inch bar capacity, this machine is built to handle a wide range of materials and job sizes, accommodating both small-scale components and larger workpieces. Powered by a 30HP motor, it delivers the strength and reliability required for demanding machining applications, ensuring smooth and efficient operation even under heavy loads.
This lathe is engineered for accuracy and efficiency, offering manufacturers the tools they need to optimize production and maintain quality standards. Whether you're producing precision components or handling heavy-duty projects, the Hyundai Kia SKT-28LM is a trusted solution for achieving consistent results in competitive industrial environments!

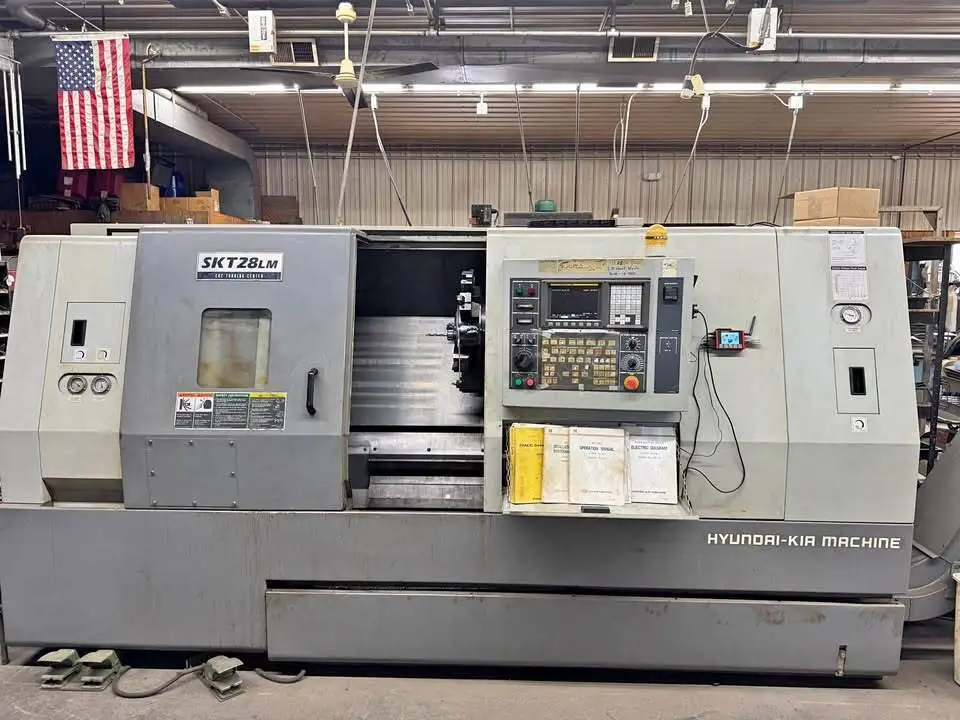

Hyundai-Kia SKT-28LM Live Tool Lathe CNC Lathe (2005)
Live Tooling / Milling
C-Axis: Equipped With
Live Tooling / Milling: Equipped With
Specifications
X-Travel: 8.70"
Z-Travel: 40.20"
Distance Between Centers: 21"
Max Swing Over Bed: 25.60"
Max Turning / Cutting Length: 39.40"
Max Cutting / Turning Diameter: 11.80"
Rapid Traverse: 787/945 IPM
Spindle
Bar Capacity: 3.00"
Chuck Size: 10.0"
Chuck Type: Hydraulic
Chuck Description: 3-Jaw Chuck
Spindle Bore: 3.70"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-8
Second Spindle
Total Spindles: 1
Turret
Single Turret Live Tooling: Equipped With
Tool Positions: 12
Live Milling Max RPM: 4000 RPM
Control
Control Make/Model: Fanuc 0iT CNC Control
Tailstock / Steadyrest
Tailstock: Equipped With
Options
Machine Options: Parts Catcher;Tool Presetter
Chip Removal: Chip Conveyor
10" 3 jaw Chuck
Live Tool
Tailstock
Tool Presetter
Fanuc 0iTb CNC
