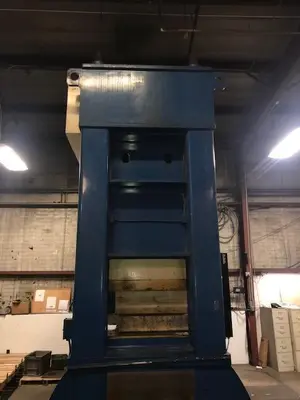

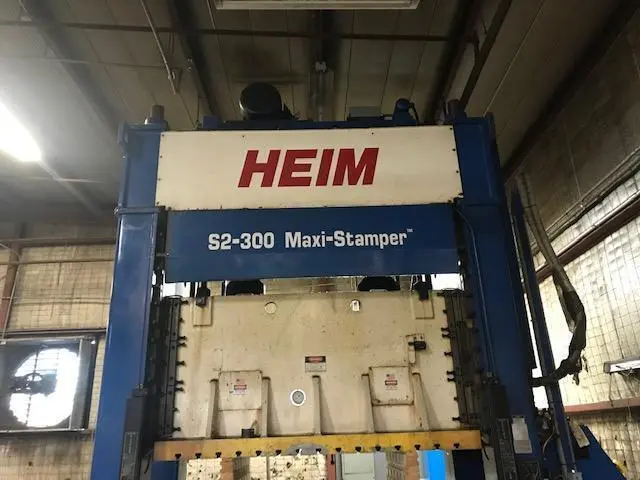

Heim Maxi Stamper 300 Ton Straight Side Double Crank Press (2001)
Have one to sell?
ConditionUsed
1 available
Heim Maxi Stamper 300 Ton Straight Side Double Crank Press (2001)
Capacity: 300 Ton
Stroke Length: 10”
Adjustment: 10”
Shut Height: 32” Over Bolster (SDAU)
Bolster Size: 100” lr x 60” fb x 6” thick
Speed: 25 - 50 SPM
Link Omnilink 5000 Control
Die Protection
Tonnage Monitor
50 HP Motor with AC Frequency Drive (Variable)
Recirculating Lubrication
T-SLots on 6” Centers
Vibro Mounts
Dual Palm Buttons
YEAR: 2001
GA Drawing on File
Imperial
| size | 300 Ton |
| Tonnage | 300 T |
| Stroke | 10" |
| Shut Height | 32" |
| SPM | 50 strokes/min. |
| Vari Speed (Yes/No) | Yes |
| Bed W | 60" |
| Bed L | 100" |
| Crank (Single/Double) | Double |
Heim Maxi Stamper 300 Ton Straight Side Double Crank Press (2001)
Capacity: 300 Ton
Stroke Length: 10”
Adjustment: 10”
Shut Height: 32” Over Bolster (SDAU)
Bolster Size: 100” lr x 60” fb x 6” thick
Speed: 25 - 50 SPM
Link Omnilink 5000 Control
Die Protection
Tonnage Monitor
50 HP Motor with AC Frequency Drive (Variable)
Recirculating Lubrication
T-SLots on 6” Centers
Vibro Mounts
Dual Palm Buttons
YEAR: 2001
GA Drawing on File
