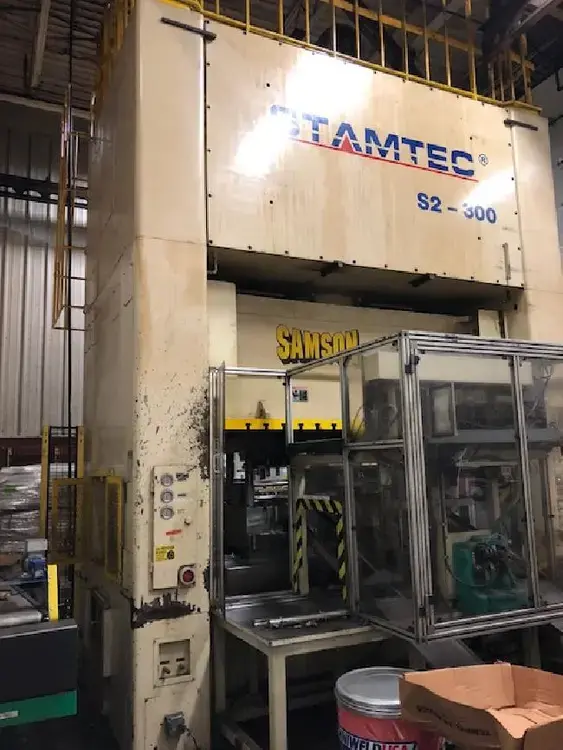

Stamtec S-2-300-98-55 Striaght Sidse Double Crank Punch Press (2000)
Have one to sell?
ConditionUsed
1 available
330 Ton Flush Floor, 55" x 98" Bed
Stamtec S-2-300-98-55 Striaght Sidse Double Crank Punch Press (2000)
Capacity (US Tons) 330 Tons
Bed Area 98.43" LR x 55.12" FB
Stroke Length 10.12"
Shut Height 30.12"
Speed 30-60 SPM
Windows 34.75" wide x 27.50"H
Ram Adjustment 8.27"
Working Height To Top of 7" Bolster 39.37"
Approx. Weight 145,000 LBS
Approx Dimensions (Top Of Press) 150"LR x 118"FB x 180"H
480/3/60,
146/73 Max Amps
S2 SERIES 2-POINT STRAIGHT SIDE PRESS: The Stamtec S2 two-point straight side press (a.k.a. double crank press) is designed for stamping large parts or ones that require a large bed area to accommodate progressive or transfer dies. Oftentimes, these types of operations require high tonnage, high flywheel energy, maximum frame or bed rigidity, or some combination thereof. The path of the slide is guided by eight full-length, ninety-degree gibs with nickel-bronze wear plates, offering maximum control, a high degree of accuracy and ease of adjustment.
