2017 TruLaser 5030 fiber, TruLaser with its high processing speed and reproducible, high part quality – even for complex contours. You can achieve excellent feed rates thanks to the solid-state laser with up to 24 kW laser power. Clever assistant systems make the complete machining process more productive and reliable than ever. Operator involvement is low; non-productive times are minimal.
Precision and speed: The TRUMPF TruLaser 5030 fiber delivers precise cuts at an impressive speed, significantly reducing your production time.
Flexibility: The generous working area allows you to cut a wide variety of materials and shapes.
Automation: Trumpf Liftmaster Concept Load Unload

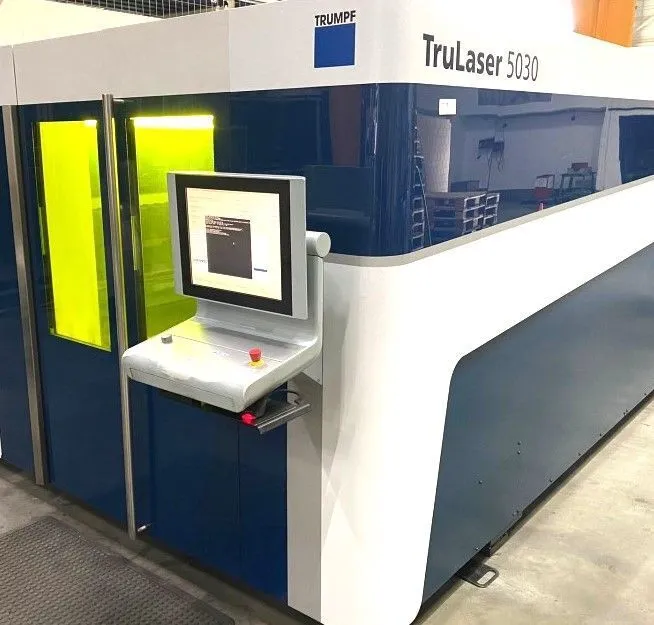

Trumpf TruLaser 5030 8000 watt Fiber CNC Laser with Automation (2017)
Specifications and Equipment
Manufacturer: Trumpf
Model: Trulaser 5030
Year of manufacture: 2015
Nominal rated power: 8000 Watts
Maximum sheet weight: 1,980 Pounds
X-Axis travel: 120"
Y-Axis travel: 60"
Z-Axis travel: 4.5"
Maximum positioning rate: 11,118 IPM (total combined axis speed)
Trumpf Liftmaster Concept Load Unload
TruDisk 8001
Automatic Pallet Changer in Longitudinal Direction
Conveyor Belt For Small / Slug
19" Touch Screen
Multi Sheet Processing
Smart Nozzle Automation (Nozzle Changer, Inspection and Smart Skip)
Integrated Video Camera
Liftmaster Concept Interface
