Charmilles Form 2-LC Sinker Type EDM (1998)
Have one to sell?
ConditionUsed
1 available

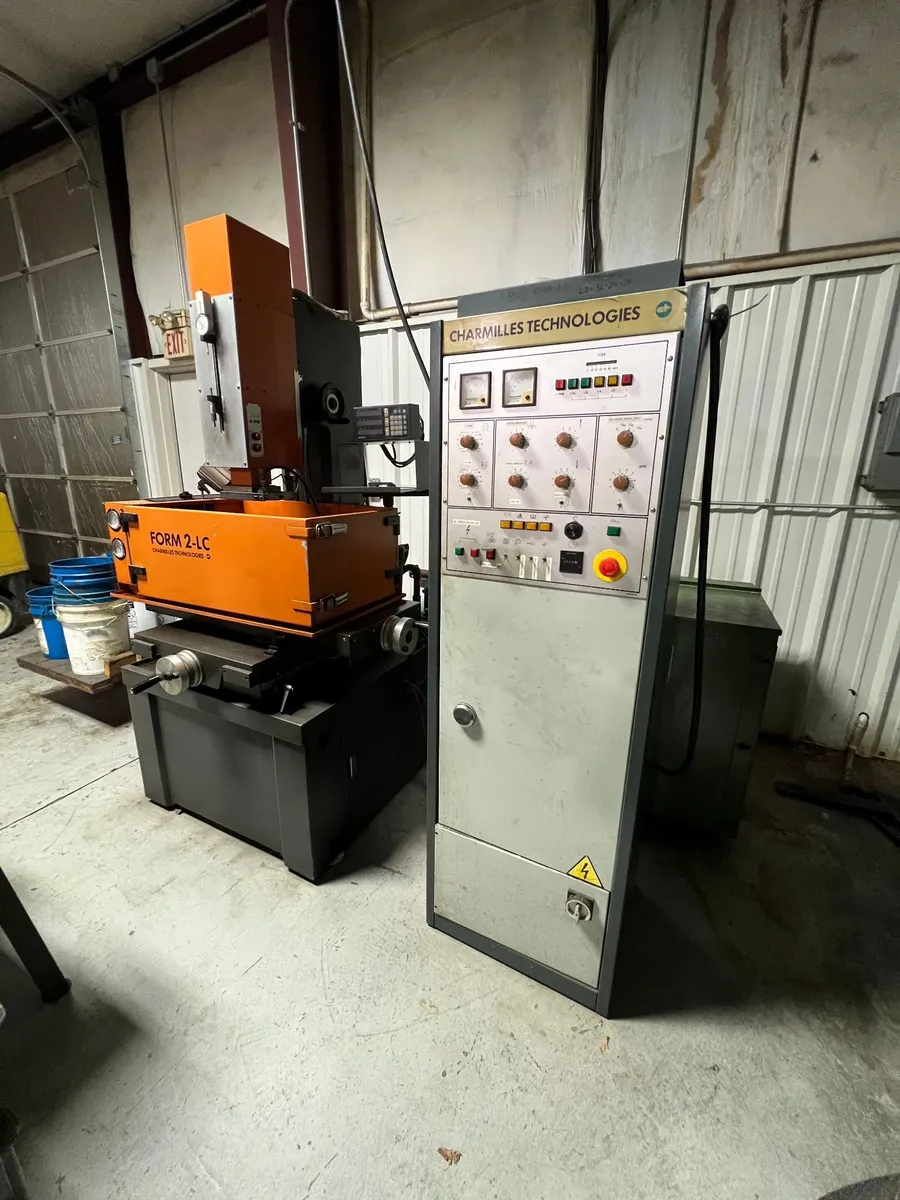

Charmilles Form 2-LC Sinker Type EDM
X-Axis Travel: 12″ (300mm)
Y-Axis Travel: 8″ (200mm)
Maximum Quill to Table: 22″ (550mm)
Quill Stroke: 8″ (200mm)
Maximum Process Current: 50 amp
Work Tank Volume: (W x D x H): 32″ x 12″ x 12″ (820x500x12mm)
Work Table Area (L x W): 19.5″ x 13.75″ (500x350mm)
Maximum Electrode Load: 132 lbs (60kg)
Maximum Workpiece Weight: 1,100 lbs (500kg)
Diaelectric Reservoir: 63 gallons (280 liters)
Machine Dimensions: (W x D x H) 56″ x 56″ x 88″
Control Dimensions: (W x D x H) 22″ x 22″ x 68″
Approximate Weight: 2,200 lbs
